Description :

TT Electronics/Optek Agent Shenzhen Huitong Innovation Technology Co., Ltd

Mr. Ping: 15323706628

Description:

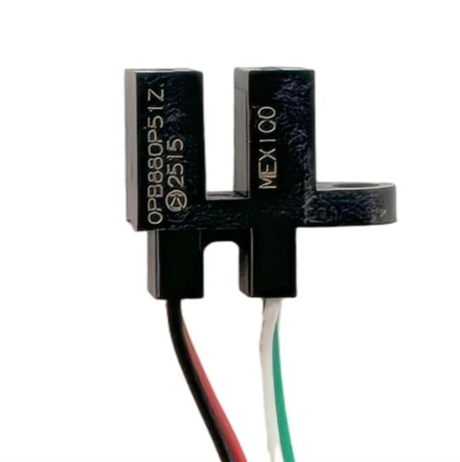

      OPB880P51Z is a slotted optical switch produced by Optek Technology Inc. and is part of its OPB880 series. This switch is designed to provide highly customized non-contact object detection solutions. It is based on a standard 0.125-inch (3.18mm) wide slot housing, allowing users to customize the output logic state, output driver circuit, aperture width, aperture surface, and installation label position according to specific application requirements. In addition, users can also choose to use wires or PCB leads to achieve flexibility in electrical interfaces. The device adopts an opaque plastic shell to reduce sensitivity to visible light and near-infrared external light sources, ensuring stable operation under various lighting conditions.

characteristic:

• Slot width: 0.125 inches (3.175mm).
• Aperture width selection: 0.050 inches or 0.010 inches to meet different detection accuracy requirements.
• Shell material: Available in opaque or infrared transparent options to meet different environmental and protection requirements.
• Installation configuration: Multiple installation options, including transmitter side installation labels, receiver side installation labels, or double-sided installation labels.
• Lead and PCB options: Flexible electrical interface selection, including leads with different spacing and PCB leads.
• Anti interference design: The design helps reduce the impact of external light sources on sensor performance.
• Compliant with RoHS Directive: Compliant with environmental standards to ensure the sustainability and compliance of products.

Application:

• Non contact object detection: suitable for situations that require precise detection of the presence or passage of objects, such as production line monitoring.
• Automation and assembly lines: used in automated equipment and assembly lines to monitor the flow and positioning of parts.
• Machine safety: used for safety related applications, such as monitoring emergency stop buttons or safety doors, to ensure the safety of operators and equipment.
• Device security: In machine security systems, it is used to monitor the integrity of security barriers and prevent unauthorized access.
• Environmental monitoring: Provide stable detection performance in environments that may be affected by external light sources.;

      The OPB880P51Z optical switch, with its customization capability and reliability, is suitable for various industrial automation and safety applications, providing an efficient and accurate object detection solution.

OPB880T51Z, OPB818, OPB830W51Z, OPB880P51Z, OPB990T55Z, OPB840W55Z, OPB890T11Z, OPB815WZ, OPB620, OPB9000, OPB830W55Z, OPB993L11Z, OPB315WZ, OPB857Z, OPB992P51Z, OPB610, OPB940W51Z, OPB933W51Z, OPB829DZ

OPB350L125, OPB350L187, OPB350L250, OPB350W062Z, OPB350W125Z, OPB350W250Z

OPB13042, OPB743WZ, OPB732WZ, OPB733TR, OPB9000

OPB100-SZ, OPB100-EZ, OP133, OP805SL, OP266A, OP506A, OP224, OP644SL
