Description :

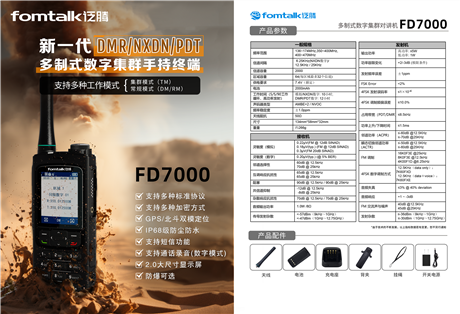

FD7000 series explosion-proof version product PD

1、 Introduction to the overall appearance of the machine

2、 Functional Features

Humanized appearance design

Adopting a 2.0-inch color display screen and a full keyboard with large buttons, the ergonomic appearance design greatly enhances the accuracy and comfort of operation.

Supports multiple working modes

Cluster Mode (TM)

Support PDT/DMR/NXDN digital cluster communication system services, realizing rich cluster communication functions such as voice single call, group call, broadcast call, emergency call, priority call, etc.

Normal mode (DM/RM)

Fully supports digital and analog services in Direct Mode (DM);

Fully supports digital and analog services in relay (RM) mode;

Supports multiple standard protocols

Support PDT/DMR/NXDN digital conventional and cluster standard communication protocols, conveniently meeting customers' different usage environments and needs, enabling users to smoothly transition from analog communication systems to digital communication systems.

GPS/Beidou positioning mode

Supporting GPS/Beidou positioning, it can achieve the transmission of GPS/Beidou position information. Combined with command and dispatch software, it can intuitively view personnel positions on the map and have voice calls with them.

■ Call recording

Built in call recording storage SD card slot, supporting up to 32GB memory card. Support digital regular and digital cluster mode call recording.

Advanced encrypted communication

In addition to supporting regular XOR encryption, the digital mode also supports ARC4 and AES256 advanced algorithm encryption, which can encrypt voice and data signals. The PDT version also supports TF encryption cards from the Ministry of Public Security, effectively ensuring the privacy of calls and the security of information.

Digital Same Frequency Relay Function (DMR/PDT Version)

By utilizing the TDMA dual time slot feature of DMR/PDT, one time slot receives and the other time slot forwards, the relay function at one frequency point can be achieved, which can effectively expand the original communication distance of the terminal within a certain range.

■ Reliable and durable quality

The quality meets the IP68 industrial protection standard, thus ensuring that the product structure is durable, wear-resistant, anti-aging, and can play an excellent role in various harsh working environments.

■ Dual explosion-proof rating

Explosion proof by gas（Ex ib IIB T4 Gb）Dust explosion prevention（Ex ib IIIC T130℃ Db）Double explosion-proof certification provides safe and reliable communication support for personnel working in flammable gas and high dust environments.

3、 Product specifications

Note: The above indicators are based on ETSI standard testing. The availability varies depending on the laws and regulations of each country. Unless otherwise stated, all specifications displayed are typical specifications and may be changed at any time without prior notice.

4、 Product Features

■ Voice call: Press PTT in standby mode or use the keyboard to dial and then press PTT, or press the selection key in standby mode to enter the menu list interface, then select "Contacts" to enter the contact menu, and then enter the "Contact List". Press PTT at the selected contact to make a call, achieving functions such as selective call, group call, and individual call.

■ SMS: Supports manual editing and preset SMS, realizing point-to-point and point-to-point multi-point SMS functions, with a maximum of 60 characters per SMS.

■ Region: Enter [Region] to display the current device region list. You can select the desired region from the list and switch to that region for use.

Scan: Open/Close, View List, Set Valid List

Working modes: regular mode, cluster mode;

■ Settings: positioning settings, language settings, power selection, display settings, prompt sound settings, standby interface, mute settings, keyboard lock, date and time settings, vibration settings, rewind settings, voice encoder type;

■ Local information: local information, LCD panel information, positioning information, battery information, receiving group list;

5、 Accessories

Battery (Code: 1SP-DC088-0246 Material: Finished Battery Specification: Q8088 7.4V 2000mAh)

Dimensions: 107mm in length, 50mm in width, and 16mm in thickness;

Weight: Approximately 95g

Charging dock (code: 1SP-CD88-GD37); Material: Finished Charging Stand; Specification: Q8088 7.4V)

Dimensions: 69mm in length, 68mm in width, and 45mm in thickness;

Weight: Approximately 49g

Charging cable (code: 29K-ZG022-049); Material: Switching power supply charging data cable (USB); Specification: 4-core wire current 2A (USB 3.1 Type C)

Switching power supply (code: 29K-ZG520-2067); Material: Medium standard switch power plug (3C certified) Iron armor specification: TEKA-UCA20CH 5V/2A);

Finished product buckle (code: 20P-Q8088-BK38); Material: Finished product buckle; Specification: Q8088)

Antenna (Code: 29T-0AP25-YS09); Material: AP25 antenna (SJ-400-470V-AP25) set with green circle; Specification: 400-470MHz Tooth exposure: 5.0 ± 0.2mm Bottom label: white background with black letters UHF: 400-470MHz (Select antenna according to frequency band)

Unlabeled black lanyard (code: 29G-GS000-0005); Material: Unlabeled black hanging rope; Specification: HS-01)
