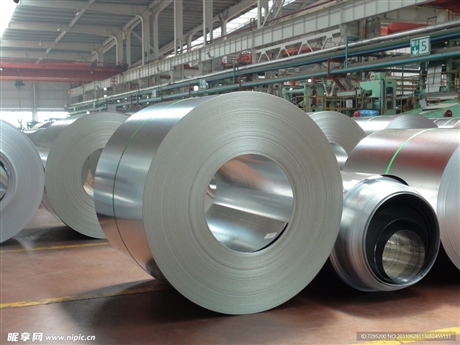

Galvanized coil DX51D with a thickness of 0.2-6.0mm supports flat slitting processing

Description :

  Galvanized coil is a steel product that is coated with a layer of zinc on the surface of cold-rolled steel plates, mainly to solve the problem of rusting of steel materials in humid and corrosive environments and extend their service life. This product is widely used in fields such as construction, home appliances, light industry, and machinery manufacturing, as it forms a strong bond between the zinc layer and the base metal through hot-dip or electroplating processes. Typical working conditions include outdoor building structural components, household appliance shell forming, ventilation duct manufacturing, etc., which have excellent corrosion resistance, formability, and welding performance, and are indispensable basic metal materials in industrial production.

  The galvanized coil has complete specifications, covering a thickness range of 0.2mm to 6.0mm and a width range of 700mm to 1800mm. The weight of the zinc layer can be customized according to demand, ranging from 20g/㎡ to 1000g/㎡. The material grades cover DX51D Z to DX56D Z series deep drawing grade materials, as well as S220GD Z to S550GD Z series structural grade high-strength materials. Surface treatment is divided into two forms: with zinc flowers and without zinc flowers. The surface without zinc flowers is more uniform and smooth, suitable for spraying or exposed scenes with high surface quality requirements. The product complies with the national standard GB/T 2518 and relevant international standards, supports third-party testing and certification, and ensures stable and reliable batch quality.

  When selecting, it is necessary to choose the appropriate material grade and zinc layer thickness according to the specific application scenario. For home appliance casings that require deep stamping, it is recommended to use deep stamping grade materials such as DX53D Z or DX54D Z, combined with a zinc free surface to achieve a better appearance effect; For building structural components such as floor slabs, purlins, etc., structural grade galvanized coils with strength S220GD Z or higher should be preferred to ensure load-bearing capacity. If used for indoor components with general anti-corrosion requirements, low zinc layer specifications can be selected to reduce costs; In outdoor facilities with high corrosion environments, a high zinc layer content is required. Pay attention to distinguishing the performance differences between ordinary galvanized coils and alloyed galvanized coils to avoid misuse that may cause processing cracking or coating peeling.

  During installation and use, galvanized coils usually need to go through deep processing procedures such as flattening, slitting, or cutting to length. It is recommended to store in a dry and ventilated warehouse, avoiding exposure to rainwater or acidic substances to prevent the formation of white rust. The cutting edge should be promptly treated with anti-corrosion measures to prevent corrosion at the cutting site. During daily maintenance, regularly check the integrity of the surface coating and promptly repair any damages found. Common faults include scratches during transportation, oxidation spots caused by improper storage, etc., which can be avoided by optimizing packaging methods and improving storage conditions. Reasonable selection of gaps and lubricants in processing molds can effectively improve molding quality and reduce mold wear.
