Cabinet type heptafluoropropane gas fire extinguishing device and other gas fire extinguishing equipment
Category:
Security/Firefighting equipment/Fire extinguishing equipment
Model:
GQQ40/2.5,GQQ70/2.5,GQQ90/2.5,GQQ100/2.5,GQQ120/2.5,GQQ150/2.5,GQQ180/2.5
Brand:
Shousheng Fire Protection
Type of fire extinguishing agent:
Heptafluoropropane (HFC-227ea)
Device form:
Cabinet/No Pipe Network
Startup method:
Automatic/Manual/Mechanical Emergency
work pressure:
4.2MPa / 5.6MPa
Fire extinguishing density:
≥8%
spray time:
≤10s
Temperature range for use:
0℃~50℃
power supply voltage:
DC24V/1.6A
Cabinet material:
Cold rolled steel plate spray coating
execution standard:
GB 25972-2010
Retail Price
10,000,000.00USD
重量
kg
- Product Description
-
Type of fire extinguishing agent Heptafluoropropane (HFC-227ea)
Device form Cabinet/No Pipe Network
Startup method Automatic/Manual/Mechanical Emergency
work pressure 4.2MPa / 5.6MPa
Fire extinguishing density ≥8%
spray time ≤10s
Temperature range for use 0℃~50℃
power supply voltage DC24V/1.6A
Cabinet material Cold rolled steel plate spray coating
execution standard GB 25972-2010
Description :

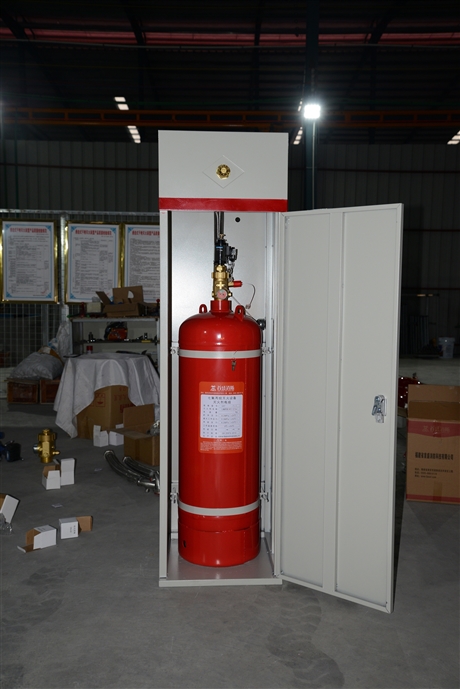

This product is a cabinet type heptafluoropropane gas fire extinguishing device, which is an efficient and clean automatic fire extinguishing equipment without a pipeline network. The device integrates fire extinguishing agent storage containers, electromagnetic drive devices, signal feedback components, etc. into an independent cabinet, without the need to lay complex pipeline networks. It is easy to install and flexible to move, especially suitable for places where the location of the protective zone often changes or where pipeline systems are not suitable for installation.
The main selling point lies in the use of heptafluoropropane (HFC-227ea) fire extinguishing agent, which has the characteristics of high fire extinguishing efficiency, fast speed, good insulation performance, no damage to the ozone layer (ODP=0), and short residual time in the atmosphere. After extinguishing the fire, there is no residue left and it will not cause secondary damage to precision instruments, electronic equipment, precious documents, and decorative surfaces. It is an ideal firefighting choice for places such as data centers, communication base stations, power distribution rooms, libraries, archives, and museums.
The equipment has a compact structure, with a standard fire red coating on the exterior. The cabinet is sturdy and durable, and has dust-proof and rust proof functions. The top is equipped with a pressure display dial, which can intuitively monitor the internal pressure status of the bottle group, ensuring that the equipment is always in a normal state of readiness. The system is equipped with a highly sensitive fire detection linkage interface, which can be connected to smoke and temperature detectors to achieve fully automatic detection, alarm, and fire extinguishing by spraying. At the same time, it also retains a manual emergency start button to provide dual safety protection.
This product is widely used in electronic computer rooms, data processing centers, telecommunications facilities, process control centers, expensive medical facilities, valuable industrial equipment, libraries, museums and art galleries, clean rooms, anechoic rooms, emergency power generation facilities, flammable liquid storage areas, etc. As a professional firefighting equipment for B2B procurement, this product is manufactured strictly in accordance with relevant national firefighting standards, with stable and reliable performance. It is an important component of improving the firefighting safety system for enterprises and institutions.
