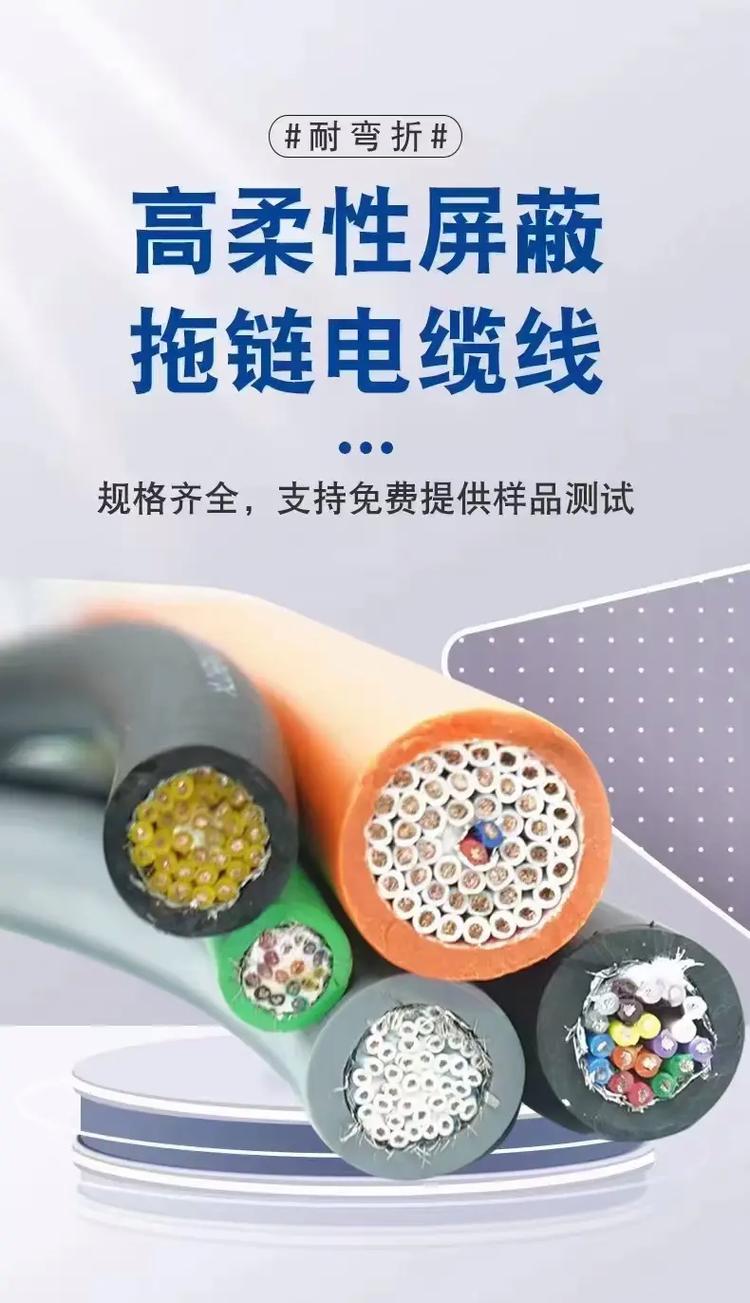

High flexibility drag chain cable with bending resistance and tensile strength suitable for automation equipment

Description :

  High flexibility drag chain cable is a special cable designed for continuous reciprocating motion scenarios, mainly to solve the problems of traditional cables being prone to breakage and insulation layer damage in frequent bending and stretching environments. It is widely used in working conditions that require long-term dynamic use, such as CNC machine tools, robot arms, and automated assembly lines. This category of cable ensures stable signal transmission and continuous power supply in high-speed motion or complex trajectories by optimizing the conductor structure and sheath material. It is an indispensable basic connecting component in modern industrial automation systems.

  This drag chain cable usually uses multiple strands of fine oxygen free copper wire twisted conductors, significantly reducing the diameter of individual wires to enhance flexibility. The insulation layer is often made of high-performance PVC or TPE materials, which have excellent wear resistance and oil resistance. The outer sheath is treated with a special formula to have low adhesion and prevent mutual adhesion in the drag chain groove. The implementation standards refer to international standards such as IEC 60228 and VDE 0250. The common number of cores covers 2 to 20 or more, with cross-sectional areas ranging from 0.14mm ² to 10mm ². The voltage withstand level is usually 300/500V or 450/750V, which meets most industrial control and power transmission needs.

  When selecting, it is important to distinguish between fixed installation cables and highly flexible drag chain cables. The latter must have a higher resistance to bending, typically requiring millions of cycles without failure. If the application scenario involves extremely low temperatures, strong corrosion, or high electromagnetic interference environments, it is necessary to choose models with shielding layers or special cold resistant sheaths. For long-distance drag chain systems, it is recommended to use a center filled reinforced structure to resist tension. Not applicable scenarios include static buried laying or high-temperature baking areas. For such working conditions, armored cables or high-temperature resistant dedicated lines should be selected to avoid resource mismatch.

  When installing high flexibility drag chain cables, ensure that the cables are arranged in a loose arc within the drag chain to avoid excessive tension or twisting. The bending radius should be strictly controlled within 7.5 to 10 times the outer diameter of the cable to reduce internal stress concentration. In daily maintenance, regularly check the cable sheath for wear, cracks, or hardening, especially at the force points entering the drag chain end. If signal fluctuations or open circuits are detected, priority should be given to checking whether the conductor has fractured due to fatigue. Keeping the drag chain groove clean to prevent metal debris from scratching the sheath can effectively extend the service life of the drag chain cable and ensure the safe operation of the equipment.
