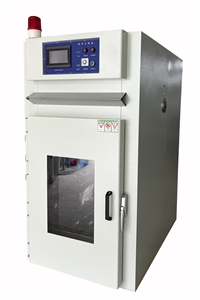

Electric hot blast oven, small constant temperature oven, hardware precision industrial oven, laboratory oven

Description :

　　1Electric hot blast ovenTemperature control system:

　　1. Temperature range: RT+10 ℃~200 ℃, RT+10 ℃~300 ℃, RT+10 ℃~400 ℃

　　2. Temperature range: RT+10 ℃~300 ℃

　　3. Temperature control meter accuracy: ± 0.01 ℃

　　4. Temperature control meter fluctuation: ± 0.5 ℃

　　5. Temperature uniformity: ± 2 ℃

　　6. Heating rate: RT~100 ℃ (about 10 minutes)

　　7. Timer setting: From 1 second to 9999 hours (with the option to set hours, minutes, or seconds), the timer will start when the temperature is reached, and the heating current will be cut off when the time is up; 8. Temperature sensing line (K) type;

　　9. Heating control: Solid state relay SSR without contacts, maintaining high stability of current;

　　10. The heating element is a stainless steel high-temperature resistant heating tube, which is pollution-free and has a long service life;

　　11. The temperature control instrument is a PID digital display instrument (Taisong instrument in Taiwan, China, China). It is a single point temperature control instrument that can perform automatic calculation. PV/SV is displayed at the same time and can be set by pressing the key.

　　IISmall constant temperature ovenBox structure:

　　1) This equipment consists of a chamber, heating system, electrical control system, air supply system, non oxidizing system, protection system, etc.

　　2) The box is made using equipment and industry manufacturing processes, with smooth lines and a beautiful appearance.

　　3) The studio is made of stainless steel SUS304 material, and the outer box is made of cold-rolled steel plate. The product shell is sprayed with environmentally friendly paint, and the overall design is beautiful and generous.

　　4) The shelves in the studio can be adjusted in height and quantity according to the user's requirements.

　　5) The insulation material between the studio and the outer box is high-temperature resistant aluminum silicate insulation cotton, with a insulation layer thickness of>70mm and good insulation effect. It is a high-performance insulation structure in China. There is an inner cavity, inner shell, and aluminum silicate insulation cotton from inside to outside, with less heat loss in the inner cavity. The inner and outer compartments, as well as the door structure, reduce the external heat transfer from the inner cavity.

　　6) High performance sealing materials and * rubber sealing structure are used between the door and the door frame, with good sealing, high temperature resistance and aging resistance.

　　7) The air duct inside the box adopts a dual circulation system, consisting of a stainless steel multi wing centrifugal fan and a circulating air duct. The heat of the electric heater placed on the side of the box is discharged to both sides through the side air duct, and then sucked in by the centrifugal fan at the top after passing through the dried material, forming a reasonable air duct that can fully circulate the hot air and achieve uniform temperature limit inside the box. Improved the ability of air flow heating and significantly improved the temperature uniformity of the drying oven.

　　8) The heater uses stainless steel electric heating tube, which heats up quickly and has a long service life.

　　IIIHardware precision industrial ovenNitrogen filling device

　　1. Pressure regulating valve: controls the nitrogen pressure, and under normal use, the nitrogen pressure is adjusted to around 2.5 kilograms;

　　2. Panel flowmeter: controls the size of nitrogen entering the box, with a range of 10L/min-60Lmin;

　　3. The nitrogen pipeline enters directly behind the box, and an 8mm quick plug gas pipe interface is reserved at the pressure regulating valve;

　　4. Note: Nitrogen is provided by the user.
