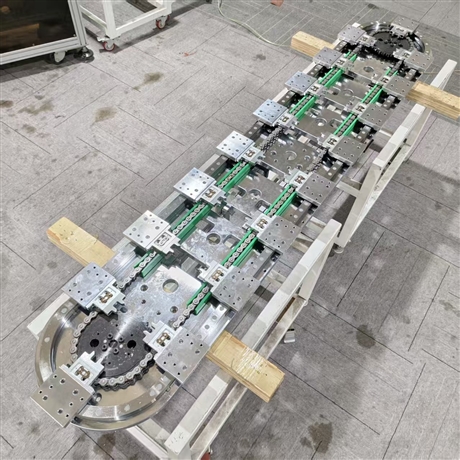

Elliptical chain drive circular guide rail circulating conveyor line

Description :

1. Ultimate space saving

Elliptical closed-loop design, with 18 workstations concentrated in a compact runway structure,Compared to a straight split assembly line, it saves over 45% of the floor spaceThe equipment tooling can be arranged on the inner/outer side of the line body, suitable for small dust-free workshops and embedded use of integrated equipment.

2. High precision+high tempo mass production

± 0.05mm repeated positioning, meeting precision locking, dispensing, soldering, and optical testing requirements; Servo indexing start stop, single station shift cycle time adjustable from 0.5 to 2 seconds, 18 station cycle uninterrupted production, no workpiece empty return waiting, increased production capacity by more than 30%.

3. Stable operation and low failure rate

T-shaped roller fully closed-loop transmission, different from ball guides, is less prone to jamming; 18 workstations are synchronously and uniformly circulated, with no movement during high-speed start stop; The service life of wear-resistant quenched guide rails is ≥ 5 years.

4. Modular non-standard flexible expansion

The number, spacing, and load of workstations can be adjusted as needed; It can be modified with dust cover, anti-static, and high temperature resistance, and can quickly connect with supporting equipment such as automated robotic arms, dispensing machines, detection cameras, welding stations, etc.
