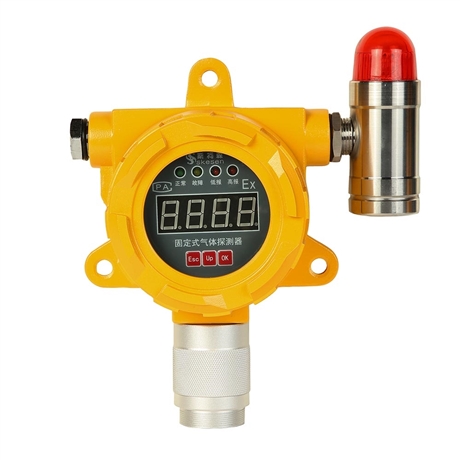

Industrial explosion-proof fixed gas detector
Category:
Instrumentation/Gas analyzer/Gas detector
Model:
SKSG-A-O2-C
Brand:
Guangdong Scoson Gas Detection Equipment Co., Ltd
Retail Price
45,612,000.00RMB
重量
kg
- Product Description
-
Description :
Product NameIndustrial explosion-proof fixed gas detector
Applicable scenarios
24-hour online oxygen monitoring for pesticide chemical plants, pharmaceutical workshops, tank areas, sewage treatment plants, confined spaces, underground pipe galleries, storage warehouses, etc.
core functionality
- Real time monitoring in the environmentgas concentrationPrevent suffocation, combustion and explosion risks caused by hypoxia and oxygen enrichment
- Automatic sound and light alarm for exceeding the standard, linked with equipment such as fans and solenoid valves
- 24-hour uninterrupted online monitoring, stable data without disconnection
- Explosion proof design, meeting the requirements for use in hazardous areas such as chemical and pesticide factories
- Product advantages
- Explosion proof safetyStrict explosion-proof certification, can be used in flammable and explosive places such as chemical workshops and tank areas, and is safe and compliant.
- High precision and long lifespanIndustrial grade sensors have fast response, small drift, long lifespan, and stable and reliable long-term use.
- Easy installation, no complex debugging requiredWall mounted installation, easy wiring, can work immediately upon power on, and has low maintenance costs in the later stage.
- Accessible control systemStandard signal output as standard, can be connected to gas alarm controller PLC、 Backend monitoring system.
- Meet safety/environmental inspection requirementsFully qualified, providing certificates of conformity, testing reports, and other materials to easily handle inspections.
Specificationsparameter
Specification parameters
Product Name A-series fixed gas detector model SKSG-A Range 0-1/10/100/1000ppm or 0-100% LEL. 0-10/50/100% VOL (depending on gas and actual needs) resolution 0.1ppm Detection Principle Catalytic combustion/infrared/electrochemical/PID principle (depending on gas selection) precision ≤± 3% F.S (higher precision can be customized) display mode Digital tube/LCD display response time T90＜30S recovery time ≤30S（T90-T10) service life Sensors take 2-5 years, instruments take 5 years Detection method Diffuse/Pipeline/Flow (depending on site conditions) Repeatability ≤±1 %F.S relay Capacity 220VAC 3A/24VDC 3A Wireless output (optional) 433M (≤ 3 kilometers accessible) (customized); GPRS (unlimited distance) (customized); WIFI/zigbee/LORA (customized; Wired output (optional) 485+switch output; 4-20mA+RS485+switch alarm output; Choose one of the above options Protection level IP66 Explosion-proof rating Explosion proof type: Exd Ⅱ CT6 Gb size 181×136×93mm(L×W×H) Probe material Aluminum alloy, stainless steel (optional) Installation method Wall mounted, pole mounted, pipeline mounted weight 1KG Working Voltage 12－35VDC， Commonly used 12VDC, 24VDC electrical interface Wiring port size: Internal thread M20 * 1.5 (G1/2 internal thread, G3/4 internal thread, 1/2NPT) Standard Accessories Detector, manual, certificate of conformity, warranty card, manufacturer's factory inspection report Select accessories Explosion proof sound and light alarm, installation bracket, pipeline installation accessories, etc working environment -20～+50℃ Product power consumption P ≤ 1.2W execution standard GB15311.1-2003； GB3836.1-2010； GB3836.2-2010； GB3836.4-2010； O3 0-100%LEL CH2O 0-10,50,100PPM CO 0-100,1000,2000,10000PPM O3 0-1,10,50,100%VOL H2S 0-50,100,1000,2000PPM CH4 0-1,10,50,100%VOL O2 0-30,100%VOL PH3 0-10,100,1000,5000PPM NH3 0-50,100,1000,2000PPM H2 0-100,1000,5000,40000PPM,100%VOL O3 0-5,10,50,100,1000,5000,10000PPM N2 0-100%VOL CL2 0-10,20PPM HCL 0-10,100,500,1000PPM NO 0-100,500,1000,5000PPM SO2 0-10,20，100,500,1000,5000,40000PPM The common gas selection is shown above, and more gases can be customized
