Cleanroom specific LED flat panel light, dust-free protection, anti glare, high color rendering industrial lighting fixtures

Description :

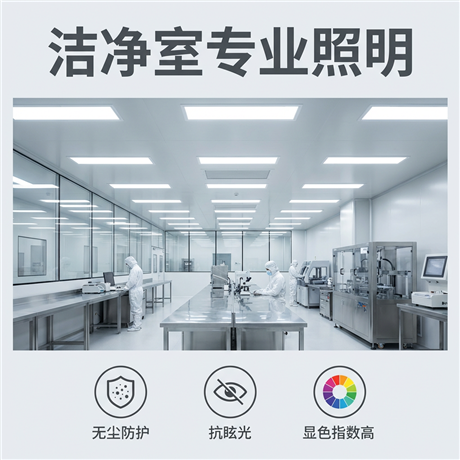

　　Clean room LED flat panel lights are embedded lighting devices designed specifically for clean rooms, laboratories, and precision manufacturing environments. The core solution is to solve the problem of product misjudgment caused by traditional lighting fixtures' dust accumulation, glare interference during operation, and insufficient color rendering. It adopts a fully sealed structure combined with surface electrostatic spraying technology, effectively blocking particle adhesion and meeting ISO 5-8 cleanliness requirements; The typical luminous flux covers the range of 3000-5000lm, suitable for working conditions such as electronic assembly, biomedicine, food packaging, etc. that have strict standards for light uniformity and color reproduction, avoiding the risk of cross contamination caused by dirt and grime accumulation in gaps of ordinary panel lights.

　　In terms of specifications, the common sizes for cleanroom LED flat panel lights are 600 × 600mm or 1200 × 300mm, with a thickness controlled between 15-25mm to match the standard ceiling keel system. The main material is selected as cold-rolled steel plate baked paint frame and PMMA light guide plate, with a protection level of IP54 or above and IEC 60598-1 safety certification. In terms of optical parameters, the color temperature provides options of 4000K neutral white and 6500K cool white light, and the color rendering index Ra ≥ 90 ensures the visibility of small defects; The drive power supply is equipped with an overvoltage protection module, with a working voltage range of AC 85-265V and a flicker depth of less than 1%, which complies with the IEEE PAR1789 health lighting standard. At the same time, it limits the content of harmful substances through the RoHS environmental directive.

　　When selecting, it is important to distinguish the differences between cleanroom LED flat panel lights and ordinary commercial flat panel lights: the former must adopt a seamless welded frame and silicone sealing ring dual dust-proof design, while the latter can easily infiltrate dust by only relying on snap fasteners for fixation; If used in pharmaceutical GMP workshops, priority should be given to models with microbial inhibition coatings to avoid bacterial growth on metal surfaces. Not suitable for outdoor humid environments (requiring additional waterproof treatment) or high-temperature baking areas (the upper limit of heat dissipation fins is usually 60 ℃), in which case explosion-proof or high-temperature resistant special lighting fixtures should be used instead. Buyers often confuse "anti glare" with "no glare", but in reality, the product achieves a comfortable visual experience with UGR<19 through a microprism diffuser, rather than completely eliminating light reflection.

　　Before installing clean room LED flat panel lights, it is necessary to confirm that the load-bearing capacity of the ceiling is ≥ 15kg/m ². Using a spring snap on quick installation structure can reduce construction time by 30%. Daily maintenance only requires wiping the surface with a dust-free cloth every quarter, and the use of alcohol containing solvents is strictly prohibited to prevent corrosion of the coating; The typical service life is up to 50000 hours (about 6 years of continuous operation). When local dark areas occur, it is mostly due to LED bead attenuation. It is recommended to replace the entire set instead of repairing a single one to ensure consistent illumination. Common faults such as flickering are often caused by aging of the driving power capacitor, which can be quickly repaired by replacing the same specification power module without disassembling the lamp body to damage the sealing.
