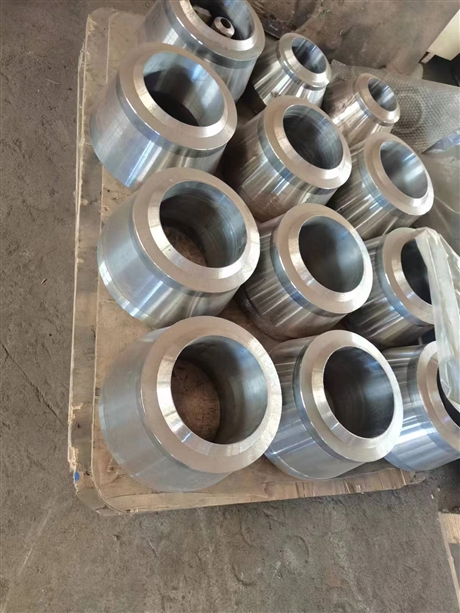

Concentric reducer, eccentric reducer, thick walled reducer
Category:
building materials/Pipe fittings/Big and small head
Model:
15-1000
Brand:
Sheng Qirui
Retail Price
45,612,000.00USD
重量
kg
- Product Description
-
Description :
Da Xiao Tou, also known as reducing pipe or variable diameter pipe, is a pipe fitting used in pipeline systems to connect two different diameter pipelines. Its main function is to achieve pipe diameter transition, adjust medium flow rate, and reduce fluid noise. It is an indispensable supporting pipe fitting in fluid transportation systems.
1、 Product Structure and Types
1. Concentric reducer
The centerline is on the same straight line and is often used for vertical pipes or pipelines that require regular installation positions to ensure smooth medium transportation.
2. eccentric reducer
One side of the pipe wall is flush, mainly used for horizontal pipelines, which can effectively prevent liquid and gas accumulation in the pipe. It is commonly used in working conditions such as pump inlet and tank outlet.
2、 Common materials
Common grades: carbon steel, alloy steel, stainless steel; pipeline steel
3、 Manufacturing process
-Molding method: hot pressing molding
Surface treatment: acid pickling passivation, sandblasting, polishing
-High dimensional accuracy, uniform wall thickness, neat ports, easy to weld and install
4、 Application Fields
Petrochemical, water treatment, food and medicine, power, shipbuilding, HVAC, gas, metallurgy and other pipeline systems can be supplied as complete sets with our company's stainless steel flanges, elbows, tees, metal hoses and other products
