- Product Description
-
Description :
Regarding the Luzhou National and Provincial Road Project in Sichuan Province, currently (May 2026)The comprehensive material unit price for standard configuration (Gr-A-4E) is between 130-160 yuan/meterIf it is a labor and material package (including installation), the price is usually around 160-220 yuan/meterInterval fluctuation.
1、 Price reference range (in linear meters)

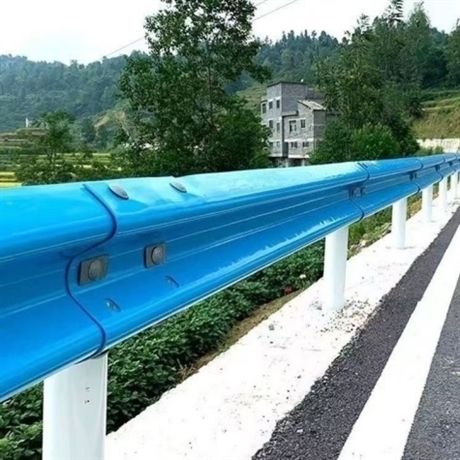

National and provincial road waveform guardrails usually require A-grade anti-collision(Board thickness 4.0mm), this is the mainstream standard for the Luzhou trunk highway.
Configuration level Typical specifications (dual wave) Material price (yuan/meter) Labor and materials package (yuan/meter) Applicable instructions National and provincial road standards Gr-A-4E (4.0mm board) 130 – 160 160 – 220 Mainstream configuration of Luzhou G321, S308 and other trunk lines Low level/old road Gr-B-4E (3.0mm board) 90 – 110 120 – 150 Early provincial roads or road sections with low traffic volume Three waves of strengthening Gr SB (Three Wave Plate) 200 – 260 260 – 350 Dangerous road sections such as sharp turns and cliffs Note: The above price includes plates, columns (Φ 140 × 4.5), blocking blocks/brackets, and bolts. It is a complete set price for hot-dip galvanizing according to the national standard (zinc layer ≥ 600g/㎡), and does not include remote shipping and value-added tax special invoices.
2、 Key factors affecting prices
- Plate thickness is the core: 4.0mm is the hard threshold for national and provincial road acceptance. If it is reduced to 3.0mm (B-level), the cost per meter can be reduced by about 30-40 yuan, but it may not comply with the latest security engineering standards.
- Column spacing: The standard spacing of 4 meters is the benchmark for the above quotation. If designed with a 2-meter spacing (Gr-A-2E, dangerous road section densification), the material usage will double, and the unit price will need to increase by 60-80%.
- Luzhou terrain: Luzhou is a mountainous area (such as Xuyong and Gulin sections), and if rock subgrade is involved, drilling and pouring (not direct driving) will be required, resulting in an additional installation fee of 20-40 yuan/meter.
3、 Suggestions for your execution (Longbang, Guanxian)
- Quotation benchmark: External quotations can directly anchor 140 yuan/meter (grade A 4.0mm material) as the benchmark. If the customer's budget is tight, provide a 3.0mm (B-level) downgrade option.
- Pay attention to the bidding price: The comprehensive price limit for the recent security engineering bidding in Luzhou (such as Luxian) is about 150-180 yuan/meter (including simple foundations) after conversion, which can be used as a reference for bidding.
- Freight calculation: For shipments from Guan County, Shandong to Luzhou, Sichuan, the cost of large vehicle freight will increase by approximately 10-15 yuan/meter after sharing. It is necessary to specify in the quotation whether it is the "on site price".
Guanxian Longbang Transportation Facilities Co., LtdReminder: Our company is located in Guan County, Shandong Province. We can provide a precise quotation for galvanized guardrails based on the specific design drawings of Luzhou National and Provincial Roads (such as Gr-A-4E or Gr-SB), and ensure that the anti-corrosion standards meet the requirements of Sichuan's humid and hot climate.
