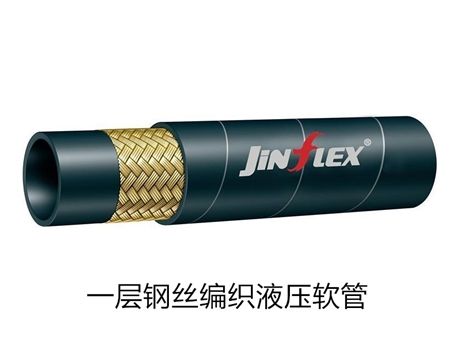

1-layer steel wire braided rubber hose
Category:
Rubber and plastic/Rubber tube/Braided rubber hose
Model:
1-6 metric 6mm imperial 1/4
Brand:
JiNflEX
Inner diameter of hose:
Minimum 5.8, maximum 6.5
Outer diameter of hose:
Minimum 14.2, maximum 15.4
Maximum work pressure:
23.0MPA 3335.0psi
Minimum bending radius:
90mm
Reference weight:
0.31KG/m
Retail Price
10,000,000.00USD
重量
kg
- Product Description
-
Inner diameter of hose Minimum 5.8, maximum 6.5
Outer diameter of hose Minimum 14.2, maximum 15.4
Maximum work pressure 23.0MPA 3335.0psi
Minimum bending radius 90mm
Reference weight 0.31KG/m
Description :
Purpose: Suitable for conveying mineral oil, water-based hydraulic oil or water in hydraulic systems such as coal mine hydraulic supports and comprehensive mining units. It can be used at -40 ℃~+100 ℃.
Features: Made of special rubber that is resistant to oil and weather, reinforced with copper plated steel wire, and has a black cloth pattern or black glossy appearance. The hose complies with the MT98-2006 standard.
AfterSalesService :
质保期：半年Key words:
