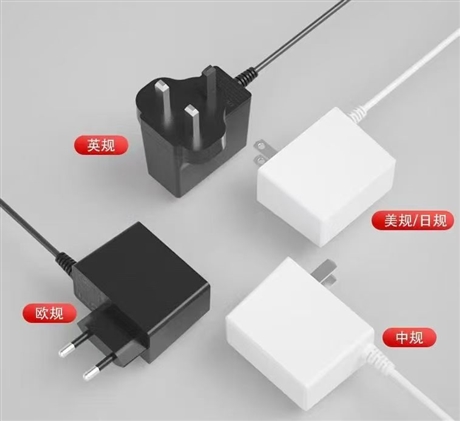

12V1A DC power adapter, small home appliance monitoring router, universal regulated power supply

Description :

  The 12V1A power adapter is an external power supply device that converts AC power to DC power, mainly used to provide stable power for electronic devices with a rated voltage of 12V and a current of 1A or less. It solves the problems of large internal power supply volume and difficult heat dissipation in devices, and is widely used in common electronic products such as surveillance cameras, wireless routers, LED light strips, set-top boxes, etc. The core of this category lies in the stability of output voltage and load adaptability, ensuring that backend devices are not damaged or restarted due to voltage fluctuations during long-term operation. It is an essential basic accessory for various small electronic terminals.

  This 12V1A power adapter typically has an input voltage range of AC 100-240V 50/60Hz and is compatible with most global power grid standards. The output terminal provides a stable DC 12V voltage, with a maximum output current of 1A (i.e. 12W power). The shell is mostly made of flame-retardant PC material, which has good heat resistance and insulation properties. The internal circuit includes rectification, filtering, voltage stabilization, and protection modules, which comply with common safety certification requirements such as CCC and CE. The common interface specifications are DC5.5 * 2.1mm or DC5.5 * 2.5mm round mouth, which need to be matched according to the device interface. Ripple noise is usually controlled within 100mVp-p to ensure power supply purity.

  When selecting a 12V1A power adapter, the first thing to confirm is that the voltage of the device must strictly match 12V, and the current requirement cannot exceed 1A. If the device requires 1.5A or 2A, this specification is not applicable and may cause the adapter to overheat or voltage drop. Secondly, it is necessary to verify the polarity of the interface, which is mostly positive inside and negative outside. However, there are also special devices that have the opposite polarity, and connecting them in reverse will burn out the device. In addition, it is important to distinguish between linear power supplies and switching power supplies. These types of power supplies are mostly high-frequency switching power supplies with small size and high efficiency, but attention should be paid to the selection of electromagnetic interference sensitive scenarios. If used outdoors or in humid environments, extra attention should be paid to its waterproof rating. Ordinary indoor models do not have waterproof capabilities.

  When installing and using a 12V1A power adapter, ensure that the plug is in good contact with the socket to avoid arcing caused by virtual connections. It is recommended to unplug the power supply when not in use for a long time, which not only saves energy but also extends the lifespan of the capacitor. Daily maintenance mainly checks whether the shell is damaged and whether the cables are exposed. If any abnormalities are found, they should be stopped immediately. Common faults include no output voltage, indicator lights not turning on, or low output voltage, which are often caused by blown internal fuses or aging electrolytic capacitors. Due to the fact that most of these products are sealed and packaged, maintenance is difficult and the cost is higher than replacement. It is recommended to replace them with new ones directly when a malfunction occurs. Pay attention to maintaining ventilation and avoid covering heavy objects to prevent poor heat dissipation and component overheating and failure.
