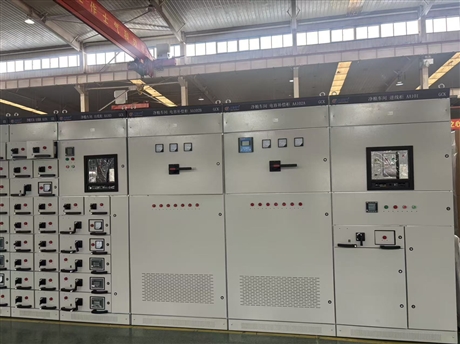

chest of drawers

Description :

Industrial distribution type low-voltage switchgear drawer cabinet is the core equipment for power distribution, control, and protection in modern power systems. It has the advantages of high safety, modular design, and non-stop maintenance, and is widely used in industrial and mining enterprises, high-rise buildings, and key infrastructure distribution centers.

Core structure and isolation design

The drawer cabinet ensures safe operation through multiple physical isolation measures. The main body is composed of a steel plate enclosed shell, and the interior is divided into three independent functional areas:

• ‌Busbar areaLocated at the rear of the cabinet, responsible for power distribution of the main circuit, adopting a flat or vertical busbar layout, with high dynamic and thermal stability.
• ‌Functional Unit AreaFront drawer compartment, equipped with withdrawable control components (such as circuit breakers, thermal relays), with each drawer corresponding to an independent circuit.
• ‌Cable areaLocated at the bottom or side of the cabinet, it is used to connect incoming and outgoing cables, and is convenient for both up and down wiring.

Key advantages and application value

• ‌Replace faulty units without power outageExtract the faulty drawer and insert the spare unitThe replacement time can be controlled within 10 minutesMaintain power supply for critical loads such as production lines and data centers.
• ‌High interchangeability and standardizationDrawers of the same specifications can be plug and play, without the need for rewiring, reducing spare parts inventory and training costs.
• ‌Support intelligent monitoring and expansionNew generation products such as Schneider BlokSeT and ABB MNS Digital integrate intelligent instruments and communication modules, supporting remote monitoring, energy consumption analysis, and predictive maintenance.
• ‌Flexible combination and expansionAdopting modular design (such as E=25mm), it supports flexible configuration of 1/4 to 24 units, and there is no need to modify the cabinet structure for subsequent expansion.
