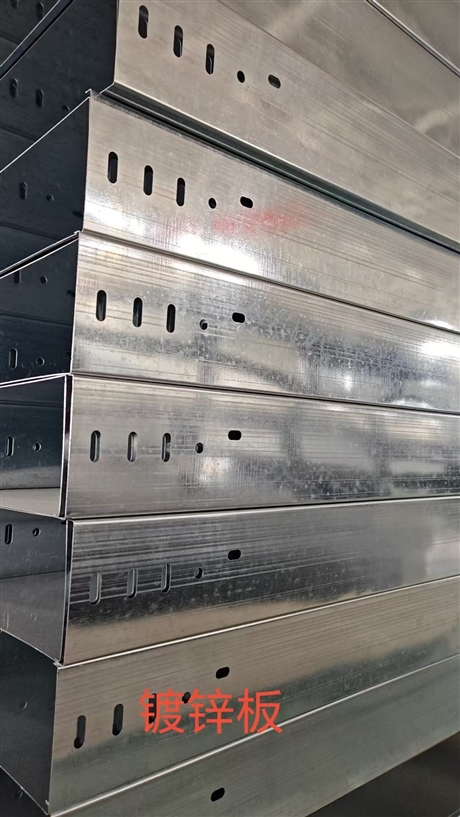

Galvanized sheet trough bridge

Description :

1、 Product Overview

Galvanized sheet trough cable tray isFully enclosed groove structure, usingHandan Iron and Steel PlateAs the core substrate, it is crafted through high-precision bending, integrated molding, and precision welding processes, combined with professional galvanizing and anti-corrosion treatment. The structure is stable and the pattern is flat. It is a cable laying protection product specifically designed for industrial plants, building electromechanical, strong and weak electrical engineering, fire power distribution and other scenarios, with high strength, high anti-corrosion, and high shielding performance.

2、 Core Material Advantage (Handan Iron and Steel Plate)

This bridge is selected throughout the entire processAuthentic Handan Iron and Steel PlateRaw materials, reject defective recycled boards, strict quality control at the source:

1. The material is dense and uniform, using high-quality cold-rolled high-strength substrate,Good toughness, bending resistance, and not easily deformedThe load-bearing performance far exceeds that of ordinary miscellaneous boards, and long-term use does not collapse or break;
2. The surface of the board has high flatness, less impurities, stronger adhesion of the galvanized layer, and is not easy to peel off or peel, fundamentally improving the overall service life of the bridge;
3. Handan Iron and Steel Plate has excellent welding performance and low-temperature stability, suitable for various complex working conditions, fatigue resistance, impact resistance, and adaptable to various harsh environments such as outdoor, basement, and corrosive workshops.

3、 Process and structural characteristics

1. Fully enclosed groove designThere are no hollow holes in the overall structure, and it is sealed with a special cover plate to prevent dust, moisture, oil stains, and foreign objects from entering. At the same time, it has excellent electromagnetic shielding effect, effectively protecting precision control cables and weak current signal cables from interference.
2. High standard galvanizing processIt is divided into two processes: electroplating and hot-dip galvanizing. The zinc layer has a uniform thickness, strong anti-corrosion and anti rust ability, acid and alkali resistance, and oxidation resistance. Compared with ordinary galvanized cable trays, the service life can be greatly extended.
3. Precision production technologyThe incision is smooth and free of burrs, and the edges and corners are passivated without damaging the cable; Standard modular design, complete accessories such as bends, tees, reducers, brackets, etc., high splicing fit, convenient on-site assembly, and time-saving and labor-saving installation.
4. Complete specifications available for customizationStandard width, height, and thickness are complete, supporting customized non-standard sizes and special lengths to meet various wiring, span, and load requirements on the construction site.

4、 Product performance highlights

• Strong load-bearing capacity: relying on the high-strength characteristics of Handan Iron and Steel Plate, it has sufficient rigidity and excellent span bearing capacity, suitable for multi-layer cable laying;
• High protection: The fully enclosed structure has a high level of protection, effectively resisting physical impacts and rodent bites;
• Corrosion resistance: substrate quality+galvanized double-layer protection, suitable for humid, dusty, and mildly corrosive industrial environments;
• Easy operation and maintenance: The enclosed structure facilitates cable organization, making it convenient and fast for later maintenance, adding or removing lines.

5、 Scope of application

Widely used in factory workshops, office buildings, commercial buildings, basement pipelines, rail transit, chemical parks, schools and hospitals, fire weak electricity, computer room power distribution and other engineering projects, especially suitable for laying scenarios with high requirements for cable protection, signal shielding, corrosion resistance and durability.

6、 Summary of Product Advantages

SelectedHandan Iron and Steel PlateOriginal factory substrate, ensuring the purity and mechanical properties of the bridge material from the source; The trough type fully enclosed structure is well protected, the galvanized process is corrosion-resistant and durable, the workmanship is fine, the installation is flexible, and the specifications are complete. It is a cost-effective preferred product for engineering electromechanical distribution and cable wiring.
