ox horn

Description :

A2544 Bull Horn Series Connector Product Introduction

1、 Product Overview

The A2544 horn series connector is a 2.54mm (0.1 inch) spacingWire to board/board to board connectors. The two sides of its shell are equipped with unique "cow horn" shaped buckle structures (also known as lock buckles or ear buckles) to ensure the locking and stability of the male and female after insertion. This series is widely used for internal connections in electronic devices.

2、 Core Features

1. Spacing standard: 2.54mm industry standard spacing, strong compatibility, easy to design and replace.
2. Lock design: The male head (needle holder) is equipped with buckles on both sides, which can make a crisp "click" sound when inserted into the female shell, effectively preventing loosening and detachment caused by vibration or pulling.
3. Multiple specifications: Provides multiple bit options ranging from 10Pin to 40Pin to meet the needs of different circuit boards.

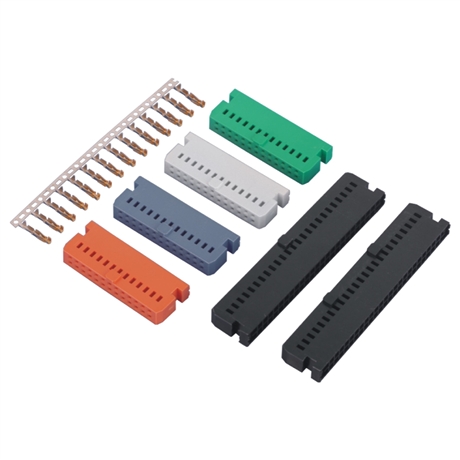

4. Color differentiation: The mother shell (rubber shell) offers multiple colors such as green, white, blue, orange, black, etc., making it convenient for wire harness management and foolproof design.
5. Reliable Material: The insulator is made of high temperature resistant and flame-retardant engineering plastic (such as PA66/PBT), and the contact parts are made of high-quality phosphor bronze or brass. The surface can be plated with gold or tin to ensure conductivity and oxidation resistance.
