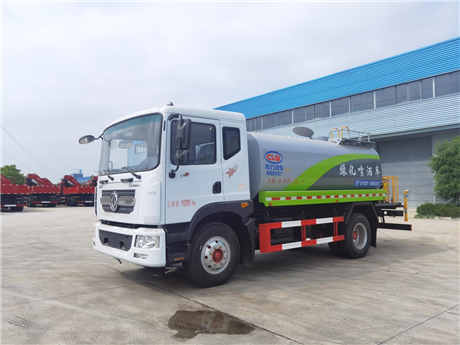

Chengli Greening Spray Truck
Category:
Special Purpose Vehicles/Special vehicles for environmental sanitation vehicles/Greening spray truck
Model:
12 square sprinkler truck
Brand:
Chengli Brand
Retail Price
9,000,000.00USD
重量
kg
- Product Description
-
Description :
project parameter product name CL5161GPSD6 Green Spraying Vehicle Chassis model EQ1165LJ9CDE volume Announced volume 10.25 cubic meters, actual volume 12.4 cubic meters (Tank size: 4200 × 2280 × 1520) mm Total mass 16200kg curb weight 6730kg rated load capacity 9340,9275kg Vehicle length, width, and height 7760×2520×3250mm wheelbase 3950mm engine model Engine companies displacement power horsepower YCY30165-6 Guangxi Yuchai Machinery Co., Ltd two thousand nine hundred and seventy one hundred and twenty-one one hundred and sixty-five chassis configuration Yuchai 165 horsepower, Fast eight speed gearbox (4-cylinder), dash cam, electric doors and windows, original air conditioning, central control (no remote key), ABS, Direction assist, air brake, 9.00R20 steel wire tire Special performance for sprinkler trucks Front flushing (spraying) and rear spraying, equipped with side spraying, equipped with a rear work platform, and installed on the platform with a green sprinkler high-pressure cannon (the cannon spray shape can be adjusted: straight, heavy rain, moderate rain, drizzle, can be continuously adjusted, with a maximum range of up to 30 meters), equipped with a high-power dedicated sprinkler pump, with a fire joint, a self flow valve, a self-priming function, and a filter screen. Suction distance ≥ 6 meters, sprinkler width ≥ 16 meters, range ≥ 30 meters. Material: The tank body is made of Q235, with a partition thickness of 3mm, a carbon steel thickness of 4mm, and a head thickness of 5mm. The large-diameter straight ball valve, aluminum alloy tee, and thickened main pipeline (76) are used
Aluminum tube fittings: aluminum alloy elbow tee, aluminum alloy flange tee, aluminum alloy pump outlet tee, aluminum alloy pump inlet straight through, one-time die casting molding with no welds, avoiding water leakage, standardized design, good interchangeability, convenient maintenance and replacement, aluminum alloy material lighter and more lightweight, beautiful and practical, improving product grade. Other accessories: aluminum alloy rear sprinkler, stainless steel ball valve, S-shaped new high-pressure water cannon
Punching plate platform: Thickened punching plate for better anti slip performance, no water accumulation on the platform, optimized structure, and stamped.AfterSalesService :
一年或3万公里质保Key words:
