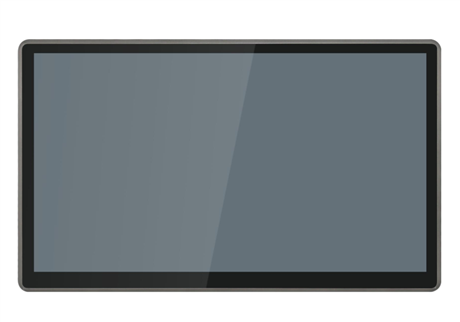

23.8/12.1 inch industrial embedded tablet with multiple Ethernet ports and Intel Core processors

Description :

  Industrial embedded tablet computers are high-performance computing terminals designed specifically for harsh industrial environments, aimed at addressing the shortcomings of traditional commercial computers in terms of vibration, wide temperature range, and multi interface scalability. This series of products offers two specifications: 23.8-inch large screen and 12.1-inch compact screen, suitable for intelligent manufacturing, automation control, and IoT gateway scenarios. The core is equipped with Intel 11th to 13th generation Core or N series low-power processors, supports dual 2.5GbE high-speed network ports, meets the requirements of high bandwidth data transmission, ensures the stable operation of the system under complex working conditions, and is an ideal hardware platform for edge computing and data acquisition.

  This industrial embedded tablet has great flexibility in interface configuration, providing differentiated I/O support according to different processor platforms. J4125/J6412/N100/N150 and 11th generation platforms come standard with 2 USB 3.0, 4 USB 2.0, and 2 DB9 COM serial ports; And the 8/10/12/13 generation high-performance platform has been upgraded to 4 USB 3.0 and 2 USB 2.0. In terms of network, the entire series comes standard with 2 Intel i225V/i226V controlled 2.5Gbe RJ45 network ports, and supports expansion to 4 network ports to meet the requirements of multi network segment isolation and aggregation. The body is made of sturdy metal material that meets industrial grade seismic and heat dissipation standards, ensuring uninterrupted operation 24/7.

  When selecting, the specific configuration should be determined based on the actual computing power requirements and installation space. If used for lightweight gateway or HMI human-machine interface, J4125 or N100 platform with 12.1-inch screen can meet the requirements of low power consumption and cost control; If complex visual processing or concurrent data is involved, it is recommended to choose the 12/13 generation Core platform with a 23.8-inch large screen. Pay attention to distinguishing the differences in the number of USB interfaces corresponding to different CPU platforms to avoid insufficient peripheral connections. For devices that require multi-channel serial communication, such as PLCs or sensors, their standard DB9 COM port can be directly connected without additional conversion, simplifying the wiring structure.

  When installing industrial embedded tablets, it is recommended to use embedded installation or VESA wall mounting to ensure good ventilation and maintain processor performance release. In daily maintenance, the dust at the air inlet should be regularly cleaned, and the physical connection stability between the RJ45 network port and the USB interface should be checked to prevent poor contact caused by workshop vibration. Common faults are often interface oxidation or driver conflicts. It is recommended to regularly update the network card and chipset drivers. The device is mostly designed without fans and relies on passive heat dissipation. Therefore, it is strictly prohibited to cover the area of the heat dissipation fins to extend the service life of electronic components and ensure the continuous stability of the production line.
