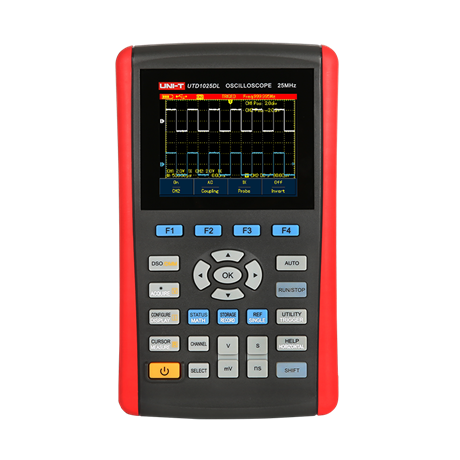

Yulide UTD1025DL handheld digital oscilloscope with 25MHz bandwidth dual channel portable maintenance and testing
Category:
Instrumentation/Electronic measuring instruments/oscilloscope
Model:
UTD1025DL
Brand:
UNI-T
bandwidth:
25MHz
number of channels:
Dual channel (CH1, CH2)
sampling rate:
100MSa/s
storage depth:
8Kpts
display screen:
Color LCD display screen
data interface:
USB Host (supports USB storage)
power supply method:
Lithium battery powered
trigger mode:
Edge trigger, pulse width trigger, etc
vertical sensitivity:
5mV/div - 10V/div
Time base range:
5ns/div - 50s/div
Retail Price
9,000,000.00USD
重量
kg
- Product Description
-
bandwidth 25MHz
number of channels Dual channel (CH1, CH2)
sampling rate 100MSa/s
storage depth 8Kpts
display screen Color LCD display screen
data interface USB Host (supports USB storage)
power supply method Lithium battery powered
trigger mode Edge trigger, pulse width trigger, etc
vertical sensitivity 5mV/div - 10V/div
Time base range 5ns/div - 50s/div
Description :
UNI-T UTD1025DL is a portable handheld digital oscilloscope designed specifically for on-site maintenance, engineering debugging, and electronic teaching. This device integrates a bandwidth of 25MHz and dual channel input, which can clearly capture and display high-frequency signal waveforms, meeting the testing requirements of most conventional electronic circuits. Its compact handheld body design, coupled with an anti slip rubber sheath, is not only lightweight and easy to carry, but also effectively prevents falls and shocks, adapting to various complex outdoor or industrial site environments.
The device is equipped with a high-definition color LCD display screen, which can clearly read waveform data and parameters even in strong lighting environments. The screen displays key measurement values such as frequency, period, peak to peak value in real-time, and supports simultaneous observation of CH1 and CH2 channels for signal comparison and analysis. The operation interface is intuitive, and users can quickly complete automatic settings (AUTO), trigger mode selection, waveform storage and playback operations through the multifunctional buttons and directional navigation keys on the panel.
UTD1025DL is equipped with rich practical functions, including a USB data storage interface, which can capture waveform screenshots or save data to a USB drive for detailed analysis and report generation on a computer in the future; Support XY mode and Lissajous graphical observation, suitable for phase difference measurement; Equipped with cursor measurement function, it can manually and accurately read voltage and time parameters. In addition, the device also supports functions such as AC/DC coupling switching, probe attenuation ratio setting, and waveform reversal, greatly enhancing the flexibility of testing. This oscilloscope is widely used in home appliance maintenance, automotive electronic diagnosis, communication equipment maintenance, and university electronic laboratories, and is a reliable assistant for electronic engineers and technicians.
