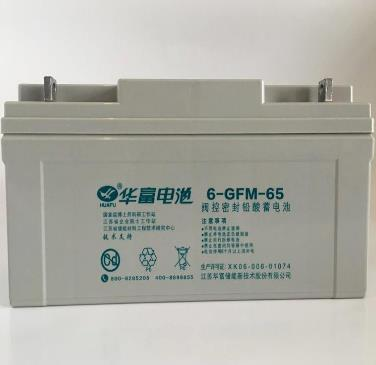

Huafu 6-GFM-65 valve regulated sealed lead-acid battery 12V65AH UPS power supply DC screen dedicated battery
Category:
Electrical Engineering/battery/Lead-acid battery
Model:
6-GFM-65
Brand:
Huafu
rated voltage:
12V
Rated capacity:
65Ah (10hr)
Reference weight:
About 19.5 kg
Dimensions (length):
350 mm
Dimensions (width):
167 mm
Dimensions (height):
179 mm
Total height (including terminals):
179 mm
Working temperature range:
-15℃ ~ +50℃
Charging method:
Constant voltage and current limiting charging
execution standard:
GB/T 19638.2
Retail Price
10,000,000.00USD
重量
kg
- Product Description
-
rated voltage 12V
Rated capacity 65Ah (10hr)
Reference weight About 19.5 kg
Dimensions (length) 350 mm
Dimensions (width) 167 mm
Dimensions (height) 179 mm
Total height (including terminals) 179 mm
Working temperature range -15℃ ~ +50℃
Charging method Constant voltage and current limiting charging
execution standard GB/T 19638.2
Description :
Huafu 6-GFM-65 is a high-performance valve regulated sealed lead-acid battery (VRLA) designed specifically for scenarios that require stable and reliable backup power. This product adopts advanced AGM (Absorbent Glass Mat) separator technology, and the electrolyte is adsorbed in the glass fiber separator without free electrolyte. Even if the battery is placed upside down 90 degrees, it will not leak, and it has excellent sealing performance and safety.
Its main selling points include:
1. * * Long life design * *: Using corrosion-resistant lead calcium tin alloy grids and a special active material formula, the battery's cycle life and float life are significantly improved, with a float life of up to 8-10 years at 25 ℃.
2. * * High reliability * *: Strict raw material screening and automated production lines ensure product consistency, with an extremely low self discharge rate of less than 3% per month, suitable for long-term backup.
3. * * Maintenance free * *: Fully sealed structure, no need to add water or adjust the acid density during use, reducing maintenance costs and workload in the later stage.
4. * * Safety and Environmental Protection * *: Equipped with a built-in safety valve, it can effectively regulate internal pressure and prevent battery expansion; Simultaneously possessing excellent flame retardancy and complying with relevant environmental standards.
Typical usage scenarios:
-Uninterruptible Power Supply (UPS): Provides continuous power supply to data centers, server rooms, medical equipment, etc. after power outages.
-* * Communication base station * *: As a backup power source for mobile communication base stations, it ensures the normal operation of communication networks during power outages.
-Power System: Used for DC screens, control circuits, and emergency lighting systems in substations and power plants.
-Solar/Wind Energy Storage: Used for energy storage in off grid or grid connected photovoltaic systems, balancing power generation and consumption loads.
Target audience:
Mainly aimed at B-end customers such as system integrators, engineering contractors, IT equipment procurement managers, maintenance departments of communication operators, and new energy project developers, suitable for industrial and commercial fields with high requirements for power stability.
