XD brand JDZR02 magnetic ring absolute encoder for high-precision angle measurement

Description :

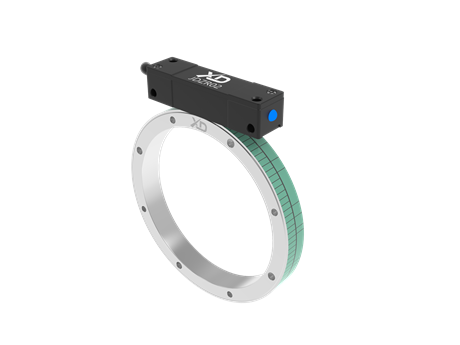

This product is an absolute value rotary encoder using the magnetic ring induction principle, model JDZR02. Its core structure consists of a precision machined aluminum alloy mounting flange and a magnetic ring with a built-in magnetic encoding track, which works in conjunction with a non-contact magnetic induction reading head. This design avoids the sensitivity of traditional optical encoders to dust, oil, and water vapor, and has strong environmental adaptability and anti-interference performance, especially suitable for industrial automation sites with complex working conditions.

The main selling point of this encoder is its "absolute value" feature. Unlike incremental encoders, it does not need to find a reference point (return to zero) after power failure, and can directly output the current precise angular position upon power on, greatly simplifying the initialization process of mechanical equipment and improving production efficiency and safety. The black rectangular reading head module integrates signal processing circuits, and the working status can be intuitively judged through the blue indicator light on the side. The spherical universal joint or cable outlet design at the tail is convenient for flexible wiring.

The product is widely used in applications that require precise angle positioning and speed control. Typical usage scenarios include: C-axis indexing of CNC machine tools, angle feedback of robot joints, conveyor belt positioning of automated packaging machinery, color control of printing machinery, and posture monitoring of various precision turntables. The target audience mainly includes automation equipment manufacturers, system integrators, and factory technical engineers who need to carry out equipment renovation and upgrading. Its standardized flange installation hole design also facilitates users to replace old encoder components and achieve seamless upgrades.
