Bottled/barreled water production line

Description :

Overview of Bottled Water Production Line Project

（1） Project Overview:

Thank you for the invitation from * * * company to provide technical consultation and pricing solutions for the * * * BPH bottled water production line project located in * * * city. After preliminary communication, this project is a turnkey project, including reverse osmosis water treatment equipment, fully automatic energy-saving bottle blowing machine, constant torque three in one filling machine, hot melt adhesive labeling machine, color film packaging machine, empty/solid bottle conveying system, blow dryer, bottle body/mouth coding machine, CIP and other complete production line equipment; It also includes public equipment such as high/low pressure air compressor systems and ice water machines; And comprehensive services such as installation, debugging, operator training, and after-sales support.

（2） Principles of System Design and Supply

1. The project complies with national and enterprise standards, and meets the differentiated needs of end users according to the contract

2. The overall design and equipment performance of the factory can keep up with the world's cutting-edge level

3. The taste of water is pure, without any impurities, and it is sweet to the mouth

4. Product packaging quality (regular bottle shape/uniform wall thickness; no scratches on the surface/no obvious scratches on the bottom of the support ring/no damage to the bottle cap/accurate liquid level; regular package shape, etc.)

5. Class output and annual production capacity guarantee

6. Adaptability to multiple categories and packaging forms

7. Raw material, energy consumption, and cost control

8. Convenient operation, automation level, and system upgrade

9. Technical lifespan and market lifespan

10. Hygiene requirements and production safety

11. Convenient equipment maintenance and upkeep, as well as long-term technical support

12. Control of total investment cost

（3） Product information:

1. Bottle type: Round bottle;

2. Bottle mouth: 3025 or 2925;

3. Capacity: 550ml (13g)/1500ml;

4. Packaging quantity: 16 bottles 550ML; 24 bottles 550ML; 6 bottles 1500ML

（4） Raw materials, formulas, and packaging materials:

1. Raw materials: municipal tap water;

2. Recipe: Purified water;

3. Packaging materials: PET bottles/PP bottle caps/PP labels//PE packaging film

（5） Construction conditions:

1. Factory area: over 2000 square meters

2. Height: 6m

3. Purification requirements: Filling room level 100000 or below

（6） Equipment standards and product standards:

1. Water treatment manufacturing standard: Q/QQSCL 001-2016

2. Manufacturing standard for bottle blowing machine: GB/T 26995-2011

3. General technical specifications for filling machines: GB/T 26995-2011

4. Hot melt adhesive labeling machine: GB/T36236-2018

5. Packaging for drinking water: GB19298-2014

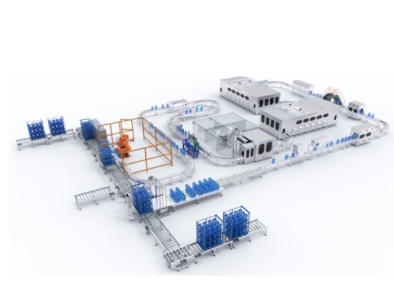

（7） Layout plan:
