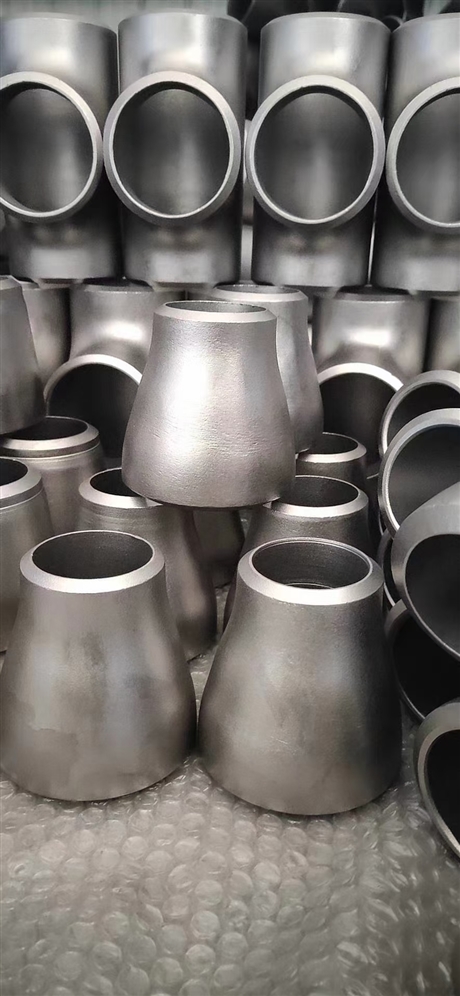

Carbon steel stainless steel concentric reducer pipe fittings with large and small heads, pipe variable diameter connectors

Description :

Big and small head, also known as reducing pipe or variable diameter joint, is a key pipe fitting used in pipeline systems to connect two pipes of different diameters. Its main function is to achieve a smooth transition of pipeline diameter, ensuring stable pressure and uniform flow of fluid during transportation. It is widely used in industrial fields such as petroleum, chemical, natural gas, power, water supply, and HVAC.

According to their structural form, reducers are mainly divided into two categories: concentric reducers and eccentric reducers. The center line of the concentric head remains consistent, suitable for vertical pipelines or situations with high fluid resistance requirements, which can effectively reduce fluid turbulence and pressure loss; The eccentric head is kept flat on one side and is commonly used in horizontal pipelines, especially in pump inlet pipelines, to prevent gas accumulation and form air pockets, ensuring the normal operation of the pump.

This product is usually made of high-quality carbon steel (such as 20 # steel), stainless steel (such as 304, 316L) or alloy steel, with excellent corrosion resistance, high temperature resistance and mechanical strength. The production process includes various methods such as pushing, pressing, forging, etc., to ensure uniform wall thickness, smooth surface, and no sand holes or cracks in the pipe fittings. The interface forms are mostly butt welded connections, and threaded or flange connections can also be provided according to customer needs. Strictly following domestic and international standards such as GB/T12459 and ASME B16.9 for production, with high dimensional accuracy, good sealing performance, and easy installation, it is an indispensable standardized component in pipeline engineering. Suitable for the variable diameter requirements of transportation pipelines for various media, ensuring the safe and efficient operation of pipeline systems.
