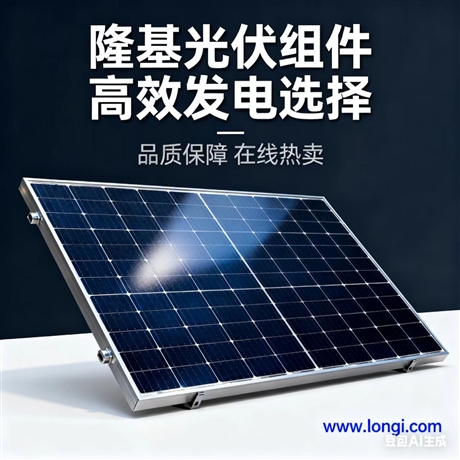

Longi Conventional Double Glass Aluminum Frame 615W
Category:
energy/Photovoltaic materials/Photovoltaic module border
Model:
2382×1134×30mm
Brand:
Longji components
Retail Price
9,000,000.00USD
重量
kg
- Product Description
-
Description :
Comprehensive electrical performance under different back power gains (taking 610W as an example)
Pmax /W
Voc/V
Isc /A
Vmp/V
Imp /A
Pmax gain
six hundred and forty-one
forty-eight point three eight
sixteen point seven five
forty point five one
fifteen point eight one
5%
six hundred and seventy-one
forty-eight point three eight
seventeen point five five
forty point five one
sixteen point five seven
10%
seven hundred and three
forty-eight point four eight
eighteen point three four
forty point six one
seventeen point three two
15%
seven hundred and thirty-four
forty-eight point four eight
nineteen point one four
forty point six one
eighteen point zero seven
20%
seven hundred and sixty-four
forty-eight point four eight
nineteen point nine four
forty point six one
eighteen point eight two
25%
working parameters
Operating Temperature
-40℃ ~ +85℃
power tolerance
0 ~ 3%
Maximum system voltage
DC1500V (IEC/UL)
Maximum rated current of fuse
35A
Nominal operating temperature
45±2℃
Security protection level
Class II
Double sided factor
80±5%
Fire rating of components
UL type 29
IEC Class C
No. 8369 Shangyuan Road, Xi'an Economic and Technological Development Zone
Website: www.longi.com
load capacity
Maximum static load on the front
5400Pa
Maximum static load on the back
2400Pa
Through hail testing
Diameter 25mm, impact velocity 23m/s
temperature coefficient (STC Test)
Temperature coefficient of short-circuit current (Isc)
+0.045%/℃
Temperature coefficient of open circuit voltage (Voc)
-0.230%/℃
Peak power (Pmax) temperature coefficient
-0.280%/℃
This regulation
