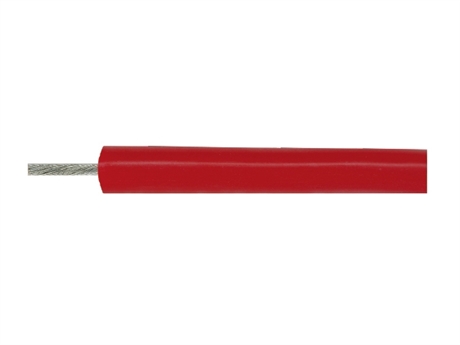

AGG High Voltage DC Silicone Rubber Insulated Cable, High Temperature Resistant Tin Plated Copper Core Wire, 5KV to 100KV Optional
Category:
Electrical Engineering/Wire and cable/power cable
Model:
AGG
Brand:
Jiangsu Xingyuan
insulating material:
silicone rubber
Conductor material:
tinned copper wire
Working temperature range:
-60℃ ~ +180℃
Rated voltage level:
5KV / 10KV / 15KV / 20KV / 25KV / 30KV / 50KV / 100KV
outer diameter tolerance:
±0.1mm
color:
Red (default)
structural form:
Multi stranded conductor+silicone rubber insulation
Applicable current type:
direct current
Environmental characteristics:
halogen-free flame retardant
Typical application scenarios:
High voltage power supply, industrial heating, aerospace, medical equipment
Retail Price
9,000,000.00USD
重量
kg
- Product Description
-
insulating material silicone rubber
Conductor material tinned copper wire
Working temperature range -60℃ ~ +180℃
Rated voltage level 5KV / 10KV / 15KV / 20KV / 25KV / 30KV / 50KV / 100KV
outer diameter tolerance ±0.1mm
color Red (default)
structural form Multi stranded conductor+silicone rubber insulation
Applicable current type direct current
Environmental characteristics halogen-free flame retardant
Typical application scenarios High voltage power supply, industrial heating, aerospace, medical equipment
Description :
The AGG series high-voltage DC cable is designed specifically for harsh electrical environments, using high-quality silicone rubber as the insulation layer material, with excellent high and low temperature resistance and electrical insulation stability. The conductor is made of multi stranded tinned copper wire, which not only has excellent conductivity, but also the tin plating process effectively prevents copper oxidation, ensuring long-term connection reliability and low contact resistance. The working temperature range of this cable is wide from -60 ℃ to+180 ℃, suitable for extremely cold or high temperature conditions, such as aerospace, new energy equipment, industrial electric furnaces, high-voltage power systems, and laboratory testing devices. Its rated voltage covers multiple levels from 5KV to 100KV, and can be flexibly selected according to actual load requirements, meeting different application standards from medium pressure to ultra-high voltage direct current transmission. The outer diameter tolerance is controlled within ± 0.1mm to ensure dimensional consistency and facilitate pipe threading, wiring, and connector matching installation. The red outer skin is clearly marked and meets the visual warning requirements for positive or high-voltage lines in industry practices, enhancing on-site operational safety. The product is halogen-free, environmentally friendly, flexible, anti-aging, ozone resistant, UV resistant, and suitable for long-term indoor and outdoor use. Widely used in fields such as power electronics, rail transit, medical equipment, scientific research instruments, etc., it is an ideal choice to replace traditional PVC or XLPE insulated cables in high temperature and high voltage applications. Support customized length and voltage level, and provide complete testing reports and material certification for bulk procurement, helping customers to efficiently promote project compliance.
