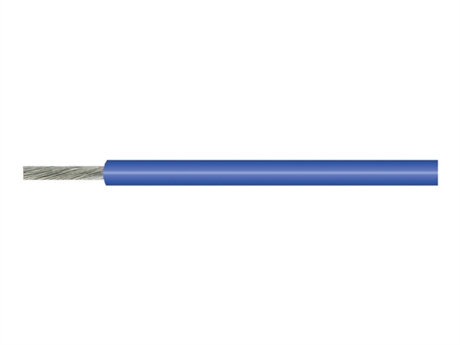

JGG silicone rubber insulated high-voltage wire with high temperature resistance of 180 degrees and rated voltage of 1000V bare copper conductor
Category:
Rubber and plastic/synthetic rubber/silicon rubber
Model:
JGG
Brand:
Jiangsu Xingyuan
execution standard:
GB5013.3-2008
CCC certification number:
two thousand and eleven trillion and ten billion one hundred and four million five hundred and nine thousand three hundred and seven
rated voltage:
AC500V / AC1000V
Working temperature range:
-60℃ ~ +180℃
Conductor material:
bare copper wire
insulating material:
silicone rubber
Product model:
JGG
Applicable Environment:
High temperature, high humidity, outdoor, industrial equipment
flame retardant performance:
Compliant with national flame retardant requirements
packaging method:
Plate mounted or cut by meter
Retail Price
9,000,000.00USD
重量
kg
- Product Description
-
execution standard GB5013.3-2008
CCC certification number two thousand and eleven trillion and ten billion one hundred and four million five hundred and nine thousand three hundred and seven
rated voltage AC500V / AC1000V
Working temperature range -60℃ ~ +180℃
Conductor material bare copper wire
insulating material silicone rubber
Product model JGG
Applicable Environment High temperature, high humidity, outdoor, industrial equipment
flame retardant performance Compliant with national flame retardant requirements
packaging method Plate mounted or cut by meter
Description :
This product is a JGG type silicone rubber insulated high-voltage wire, designed specifically for electrical connections in high temperature, high voltage, and complex environments. Using high-quality bare copper wire as the conductor, it has excellent conductivity and mechanical strength, ensuring stable and efficient current transmission. The outer insulation material is made of high-performance silicone rubber, which has excellent resistance to high and low temperatures. It can work stably for a long time in the extreme temperature range of -60 ℃ to+180 ℃, and is not easy to age, crack or harden. It is particularly suitable for high-temperature operation scenarios such as heating equipment, metallurgy, chemical industry, power, lighting, etc.
This cable complies with the national standard GB5013.3-2008 and has CCC certification (certificate number: 2011010104509307), with reliable quality and guaranteed safety. The rated voltage covers two specifications: AC500V and AC1000V, meeting the voltage requirements of different industrial equipment. The silicone rubber sheath also has good flexibility and bending resistance, making it easy to install wiring in narrow spaces or frequent moving situations. At the same time, it has certain resistance to ozone, ultraviolet radiation, and flame retardancy, improving the safety and lifespan of use.
Typical application scenarios include: industrial electric furnaces, drying equipment, motor leads, transformer connections, high-temperature lighting fixtures, laboratory instruments, new energy vehicle battery pack connection wires, etc. The target user group mainly includes electrical equipment manufacturers, industrial automation system integrators, engineering installation companies, and maintenance service providers. The product supports cutting by meter, making it convenient for engineering to purchase on demand and reducing inventory pressure. The overall structure is compact, with a moderate outer diameter, making it easy to thread pipes and crimp terminals. It is an ideal choice to replace ordinary PVC or XLPE cables in high temperature environments.
