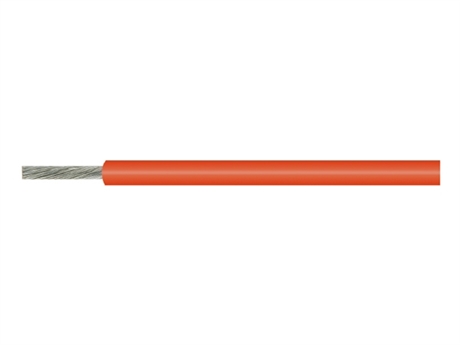

High temperature resistant JG silicone wire AC500V/1000V rated temperature -60 to 180 degrees soft flame-retardant power cable
Category:
Rubber and plastic/Rubber tube/Silicone tube
Model:
JG
Brand:
Jiangsu Xingyuan
execution standard:
GB5013.3-2008
CCC Certificate Number:
two thousand and eleven trillion and ten billion one hundred and four million five hundred and nine thousand three hundred and seven
rated voltage:
AC500V/AC1000V
rated temperature:
-60℃~+180℃
Conductor material:
Stranded multiple strands of bare copper wire
insulating material:
silicone rubber
Product model:
JG
color:
orange
feature:
High temperature resistance, softness, and flame retardancy
Retail Price
9,000,000.00USD
重量
kg
- Product Description
-
execution standard GB5013.3-2008
CCC Certificate Number two thousand and eleven trillion and ten billion one hundred and four million five hundred and nine thousand three hundred and seven
rated voltage AC500V/AC1000V
rated temperature -60℃~+180℃
Conductor material Stranded multiple strands of bare copper wire
insulating material silicone rubber
Product model JG
color orange
feature High temperature resistance, softness, and flame retardancy
Description :
This product is a JG series silicone rubber insulated installation wire designed specifically for extreme temperature environments and high flexibility requirements. The cable adopts high-quality multi stranded bare copper wire twisted conductors, which have excellent conductivity and tensile strength; The outer layer is wrapped with a high-performance silicone rubber insulation layer, with a smooth and delicate surface, excellent weather resistance, ozone resistance, and UV resistance.
The core advantage lies in its excellent temperature resistance performance, which can work stably in a wide temperature range of -60 ℃ to+180 ℃ for a long time, with higher short-term temperature tolerance, and can still maintain soft physical properties under this temperature difference. It is not easy to harden or crack, which greatly facilitates wiring construction in narrow spaces or complex pipelines. At the same time, silicone rubber material has good flame retardancy and electrical insulation, meeting the requirements of GB5013.3-2008 national standard and CCC certification (certificate number: 2011010104509307), ensuring safe use.
This product is widely used in heating devices, baking equipment, high-temperature lighting, instrument internal connections, and high-temperature area wiring for household appliances in industries such as metallurgy, power, chemical, aviation, and shipbuilding. The orange appearance is eye-catching, making it easy to identify and maintain the circuit. Whether as a lead wire for high-temperature electric heating equipment or as a power connection wire for mobile appliances, this silicone wire can provide reliable and durable power transmission guarantee, making it an ideal cable solution for industrial high-temperature environments.
