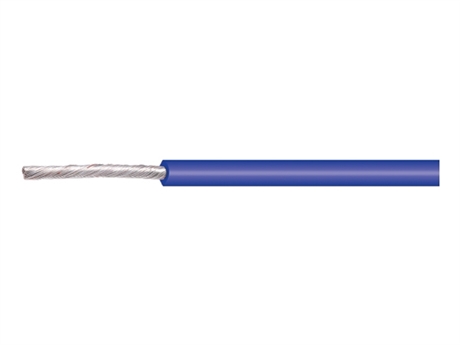

JHXG 1140V High Temperature Resistant Silicone Wire Tin Plated Copper Core Silicone Rubber Insulated Flexible Cable
Category:
Rubber and plastic/Rubber tube/Silicone tube
Model:
JHXG
Brand:
Jiangsu Xingyuan
model:
JHXG
rated voltage:
1140V
Conductor material:
tinned copper wire
insulating material:
silicone rubber
Working temperature range:
-60℃~+180℃
Experimental voltage:
2KV/10KV
Outer diameter tolerance:
±0.1mm
Optional Colors:
White, red, black, brown, yellow, blue
Retail Price
9,000,000.00USD
重量
kg
- Product Description
-
model JHXG
rated voltage 1140V
Conductor material tinned copper wire
insulating material silicone rubber
Working temperature range -60℃~+180℃
Experimental voltage 2KV/10KV
Outer diameter tolerance ±0.1mm
Optional Colors White, red, black, brown, yellow, blue
Description :
The JHXG series silicone wire is a high-performance special cable designed specifically for harsh environments. The core conductor is made of high-quality tinned copper wire twisted together, which not only has excellent conductivity, but also the tin plating layer can effectively prevent copper conductor oxidation and corrosion, ensuring stable electrical connection and excellent welding performance during long-term use. The insulation layer is made of high-quality silicone rubber material, which endows the cable with excellent flexibility and resistance to high and low temperatures, allowing it to maintain stable physical properties over a wide temperature range of -60 ℃ to+180 ℃, without becoming hard, brittle, or deformed due to low temperatures or softening due to high temperatures.
The product is designed with a rated voltage of 1140V and can withstand experimental voltage tests of 2KV/10KV. It has high insulation strength and is safe and reliable. The silicone rubber insulation layer also has good aging resistance, ozone resistance, UV resistance, and flame retardant properties, with a long service life and suitable for various complex working conditions. The outer diameter of the cable is precisely controlled with a tolerance of only ± 0.1mm, making it easy to lay and install cables in narrow spaces.
This product is widely used in household appliances (such as rice cookers, microwaves, ovens), lighting fixtures, motor leads, internal connection wires of instruments and meters, electric heating equipment, as well as industrial equipment in high-temperature or cold regions such as metallurgy, electricity, and chemical industry. Its soft texture makes the bending radius small and the installation flexible and convenient, making it an ideal choice to replace ordinary PVC wires in high temperature or high flexibility requirements. Provide multiple standard colors such as white, red, black, brown, yellow, blue, etc. for easy circuit differentiation and management.
