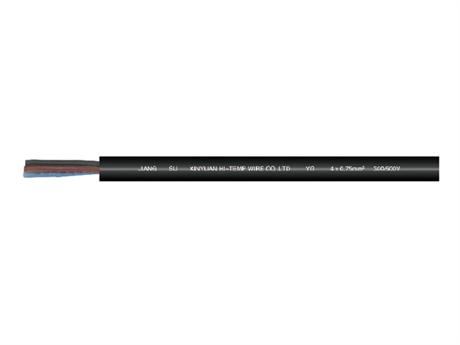

Silicone rubber high-temperature cable YGZ 4 * 0.75mm ² high-temperature resistant and corrosion-resistant soft wire
Category:
Rubber and plastic/synthetic rubber/silicon rubber
Model:
YGZ
Brand:
XINYUAN HI-TEMP WIRE CO.,LTD
model:
YGZ
Conductor material:
tinned copper wire
insulating material:
silicone rubber
sheath material:
silicone rubber
core count:
4-core
cross-sectional area:
0.75mm²
rated voltage:
300/500V
Operating Temperature:
-60℃~+180℃
feature:
High temperature resistance, cold resistance, softness, and corrosion resistance
Retail Price
9,000,000.00USD
重量
kg
- Product Description
-
model YGZ
Conductor material tinned copper wire
insulating material silicone rubber
sheath material silicone rubber
core count 4-core
cross-sectional area 0.75mm²
rated voltage 300/500V
Operating Temperature -60℃~+180℃
feature High temperature resistance, cold resistance, softness, and corrosion resistance
Description :
This product is a high-performance silicone rubber insulated and sheathed flexible cable, model YGZ, designed specifically for extreme temperature environments and complex industrial scenarios. The conductor is made of high-purity tin plated copper wire, which has excellent conductivity and oxidation resistance, effectively preventing copper wire oxidation and blackening, ensuring long-term electrical stability. The insulation layer and outer sheath are both made of high-quality silicone rubber material, which endows the cable with excellent high and low temperature resistance. It can maintain softness, non hardening, and non cracking in a wide temperature range of -60 ℃ to+180 ℃, especially suitable for connecting in cold regions or high-temperature heating equipment.
The cable structure is compact, with a 4-core design, a single core cross-sectional area of 0.75mm ², a rated voltage of 300/500V, and good electrical insulation strength and mechanical protection capability. Silicone rubber material has natural weather resistance, ozone resistance, and UV aging resistance, as well as excellent oil and acid alkali corrosion resistance, making it suitable for use in harsh environments such as chemical plants, smelters, and power plants. Its soft sheath design allows for a small bending radius of the cable, making it easy to install and wire in narrow spaces or mobile devices, and less prone to breakage.
This product is widely used in instrument connection, power transmission and control circuits in high-temperature areas of metallurgy, power, chemical, shipbuilding, machinery manufacturing and other industries. Specially suitable for internal connection wires of high-temperature electrical appliances such as heating elements, ovens, microwave ovens, heaters, lamps, as well as drag chain systems that require frequent movement. Compared to ordinary PVC or PE cables, silicone rubber cables have no halogen release at high temperatures, are environmentally friendly and safe, and produce less smoke during combustion, meeting the high standards of modern industry for environmental protection and safety. It is an ideal choice to replace traditional high-temperature lines and ensure stable operation of equipment under harsh working conditions.
