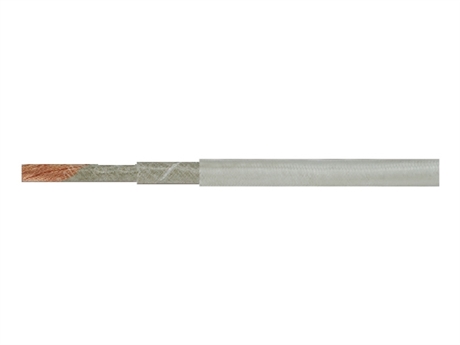

GN500 Mica Silicone High Temperature Wire, Temperature Resistant to 500 ° C, Metallurgical and Chemical Oven Special Wire
Category:
Rubber and plastic/synthetic rubber/silicon rubber
Model:
GN-500
Brand:
Jiangsu Xingyuan
product name:
Mica silicone high-temperature wire
Product model:
GN-500
Temperature resistance rating:
500℃
rated voltage:
Below 600V (AC)
Conductor material:
Multiple strands of fine twisted copper wire
insulating material:
Mica tape+silicone rubber
laying method:
Fixed installation
Applicable humidity:
Relative humidity below 65%
application field:
Metallurgy, petroleum, chemical, oven
Retail Price
9,000,000.00USD
重量
kg
- Product Description
-
product name Mica silicone high-temperature wire
Product model GN-500
Temperature resistance rating 500℃
rated voltage Below 600V (AC)
Conductor material Multiple strands of fine twisted copper wire
insulating material Mica tape+silicone rubber
laying method Fixed installation
Applicable humidity Relative humidity below 65%
application field Metallurgy, petroleum, chemical, oven
Description :
This product is a high-performance mica wrapped silicone insulated high-temperature cable, model GN-500, designed specifically for extreme high-temperature environments. The conductor is made of high-quality multi stranded tinned copper wire or bare copper wire, which has excellent conductivity and flexibility, effectively resisting the skin effect in high-frequency signal transmission. The insulation layer has a unique structure, with the inner layer tightly wrapped around natural mica tape, utilizing the high temperature and flame resistance properties of mica to form the first strong thermal barrier; The outer layer is extruded with high-strength silicone rubber sheath, which has excellent heat aging resistance, ozone resistance, and electrical insulation performance, while maintaining the flexibility of the cable in low temperature environments, making it easy to install and maintain under complex working conditions.
The long-term working temperature of this cable can reach 500 ℃, with stronger instantaneous temperature resistance, and it does not melt, drip, or release halogens at high temperatures, meeting the dual standards of environmental protection and safety. Suitable for power transmission lines with AC rated voltage of 600V and below, especially suitable for fixed installation scenarios. Widely used for internal connections of high-temperature heating equipment in industries such as metallurgy, steel, petrochemicals, power boilers, glass manufacturing, ceramic sintering, etc., such as industrial ovens, muffle furnaces, heat treatment equipment, high-temperature sensor leads, etc. Stable performance in environments with a relative temperature of 65% or below can effectively ensure the safety of power supply and accurate signal transmission at high-temperature work sites. It is an ideal upgrade solution to replace traditional asbestos and ordinary silicone wires, ensuring long-term stable operation of equipment under severe thermal shock.
