Teflon insulated carbon fiber heating wire 600V high temperature resistant heat tracing belt T700SC carbon wire heating cable
Category:
mechanical equipment/Electric heating equipment/Electric hotline
Model:
Heating cable
Brand:
Jiangsu Xingyuan
execution standard:
GJB773A/8A-2000
rated voltage:
600V
power frequency withstand voltage:
3500V
Working temperature range:
-60℃ ~ +200℃
Conductor material:
Japanese original carbon wire T700SC
insulating material:
Teflon (PTFE)
Heating principle:
Carbon fiber resistor generates heat
Key Features:
High pressure resistance, corrosion resistance, and good flexibility
Retail Price
10,000,000.00USD
重量
kg
- Product Description
-
execution standard GJB773A/8A-2000
rated voltage 600V
power frequency withstand voltage 3500V
Working temperature range -60℃ ~ +200℃
Conductor material Japanese original carbon wire T700SC
insulating material Teflon (PTFE)
Heating principle Carbon fiber resistor generates heat
Key Features High pressure resistance, corrosion resistance, and good flexibility
Description :
This product is a high-performance PTFE insulated carbon fiber heating wire designed for constant temperature tracing and heating applications in harsh environments. The core conductor of the product is made of Japanese original T700SC high-strength and high modulus carbon fiber wire. Compared with traditional metal alloy heating elements, it has the advantages of light weight, high strength, uniform heating, and no electromagnetic radiation. The outer insulation sheath is made of high-quality polytetrafluoroethylene material, which has excellent chemical corrosion resistance, weather resistance, and electrical insulation performance. It can work stably for a long time in a wide temperature range of -60 ℃ to+200 ℃, and is not easy to age and crack.

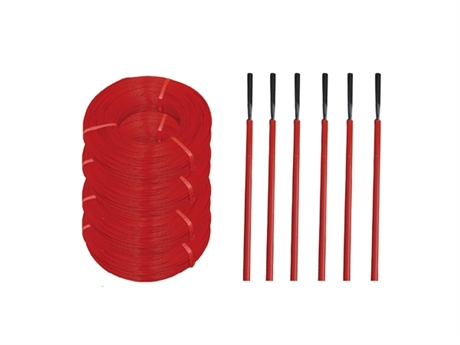

The heating wire has a rated voltage of 600V and a power frequency withstand voltage of up to 3500V, which complies with the GJB773A/8A-2000 military standard specifications, and has extremely high safety and reliability. It has excellent flexibility and is easy to wrap and install on the surface of pipelines, tanks, or complex equipment. It is particularly suitable for scenarios such as petrochemical pipeline antifreeze, instrument insulation, medical equipment heating, aerospace component temperature control, and high-end floor heating systems. Due to the far-infrared characteristics of carbon fiber heating, the heat conversion efficiency is high and the energy-saving effect is significant. The product offers two forms of wire: whole roll wire and customized length with terminal leads, making it convenient for users to cut and connect according to actual engineering needs. It is an ideal choice in the fields of industrial heat tracing and precision temperature control.
