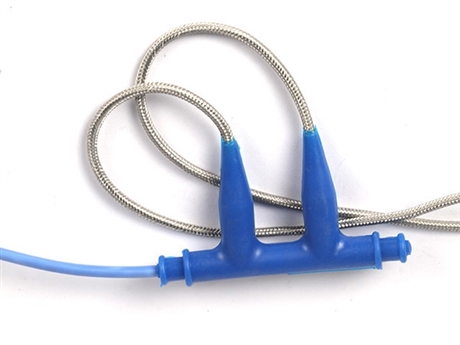

220V carbon fiber heating cable 12K carbon wire double conductive steel wire shielded underfloor heating wire
Category:
Electrical Engineering/Electric heating equipment/Electric heating strip
Model:
Jiangsu Xingyuan
Brand:
Jiangsu Xingyuan
Conductor material:
12K carbon fiber
rated voltage:
220V
outer diameter of cable:
6.0mm
Maximum surface temperature:
≤65℃
insulating material:
PVC/PTFE/Silicone
shielded layer:
Copper wire+steel wire double shielding
Linear power reference:
12.5 meters ≈ 230W
Applicable scenarios:
Underfloor heating/pipe tracing
Retail Price
10,000,000.00USD
重量
kg
- Product Description
-
Conductor material 12K carbon fiber
rated voltage 220V
outer diameter of cable 6.0mm
Maximum surface temperature ≤65℃
insulating material PVC/PTFE/Silicone
shielded layer Copper wire+steel wire double shielding
Linear power reference 12.5 meters ≈ 230W
Applicable scenarios Underfloor heating/pipe tracing
Description :
This product is a high-performance electric floor heating cable manufactured using advanced carbon fiber heating cores, designed specifically for ground heating systems in homes, villas, apartments, and commercial places. The core conductor of the product uses 12K carbon fiber precursor. Compared with traditional metal heating cable, it has obvious advantages such as more uniform heating, no electromagnetic radiation, long life, bending resistance, aging resistance, etc. Carbon fiber materials can generate far-infrared light waves after being powered on, transferring heat through radiation, providing a comfortable feeling and meeting the heating needs of human health.
The cable structure adopts multi-layer composite insulation and shielding technology, with high temperature resistant insulation materials such as PVC, PTFE or silicone wrapped inside to ensure electrical safety; Adding a dual shielding layer of copper wire barrier and steel wire barrier on the outer layer not only effectively protects the grounding and prevents leakage risks, but also enhances the mechanical strength of the cable, preventing damage caused by compression or trampling during construction or use. The outer sheath has good flexibility, is easy to lay and install, and can adapt to various complex ground structures.
The rated voltage of this product is 220V, and the linear power configuration is reasonable (such as 12.5 meters corresponding to 230W, about 18.4W/meter). The maximum working temperature on the surface is controlled within 65 ℃, which not only ensures heating efficiency but also avoids overheating and damage to floor materials. Suitable for floor surfaces with good thermal conductivity such as tiles, marble, cement mortar, etc. It can also be used for special scenarios such as pipeline heat tracing and antifreeze, roof snow melting, etc. The product has passed strict quality inspection and is safe and stable, making it an ideal choice for modern green and energy-saving heating.
