Flame retardant basic type self limiting temperature electric heating belt DXW series pipeline antifreeze insulation
Category:
Electrical Engineering/Electric heating equipment/Electric heating strip
Model:
DXW-8mmJ DXW-10mmJ DXW-12mmJ
Brand:
Jiangsu Xingyuan
product name:
Flame retardant basic type heat tracing belt
Model:
DXW-8mmJ, DXW-10mmJ, DXW-12mmJ
rated power:
20W/m, 25W/m, 30W/m
Maximum temperature tolerance:
<105℃
Maximum maintenance temperature:
<60℃
Temperature level:
Low temperature series
Sheath material:
Flame retardant polyolefin
working principle:
PTC self limiting temperature
Application scenarios:
Pipeline antifreeze and process heat tracing
Retail Price
10,000,000.00USD
重量
kg
- Product Description
-
product name Flame retardant basic type heat tracing belt
Model DXW-8mmJ, DXW-10mmJ, DXW-12mmJ
rated power 20W/m, 25W/m, 30W/m
Maximum temperature tolerance <105℃
Maximum maintenance temperature <60℃
Temperature level Low temperature series
Sheath material Flame retardant polyolefin
working principle PTC self limiting temperature
Application scenarios Pipeline antifreeze and process heat tracing
Description :

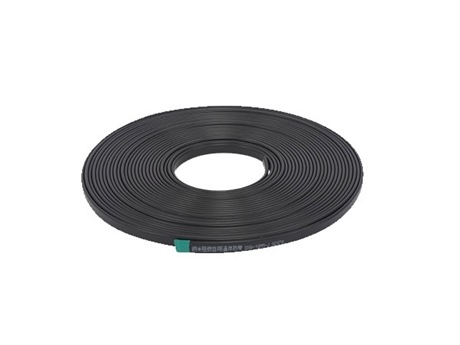

This product is a flame retardant basic type self limiting temperature electric heat tracing tape, designed specifically for anti freezing insulation and process heat tracing of industrial pipelines, tanks, and civilian facilities. Its core uses polymer PTC material as the heating element, which has unique self limiting temperature characteristics: when the ambient temperature decreases, the output power automatically increases to compensate for heat loss; When the temperature rises, the power automatically decreases, effectively preventing overheating and burning, ensuring the safe and energy-saving operation of the system.
The outer sheath of the product is made of high-quality flame-retardant polyolefin material, which has excellent corrosion resistance, aging resistance, and mechanical strength, and can adapt to complex working conditions such as humidity, acidity, and alkalinity. This series of heat tracing belts is soft and lightweight, easy to wrap and install on various shapes of pipeline surfaces, and can be quickly installed with aluminum foil tape or fixed buckles, greatly reducing installation and maintenance costs.
Mainly suitable for pipeline antifreeze, condensate thawing, instrument pipeline tracing, and solar water heater pipeline insulation in industries such as petroleum, chemical, power, metallurgy, and construction. Especially for water pipes, fire protection pipelines, sewage pipelines, etc. in low-temperature environments, it can provide continuous and stable heat output to prevent medium freezing and blockage. The product offers a variety of width specifications (8mm/10mm/12mm) and power options (20W/25W/30W). Users can flexibly choose according to the actual pipe diameter size and the required temperature to meet different levels of heat tracing needs. It is an ideal solution for pipeline protection in winter.
