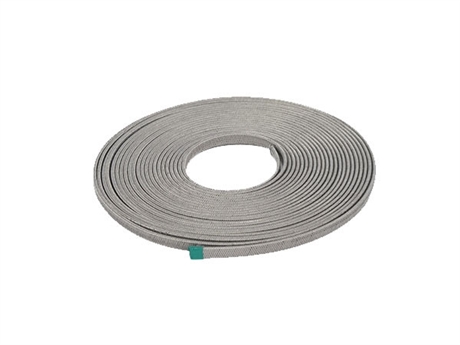

Explosion proof shielding type self limiting temperature electric heating belt DXW series pipeline insulation and antifreeze 220V
Category:
mechanical equipment/Electric heating equipment/Electric heating strip
Model:
DXW—8mmP DXW-10mmP DXW—12mmP
Brand:
Jiangsu Xingyuan
rated voltage:
220V
rated power:
20W/m, 25W/m, 30W/m
Maximum maintenance temperature:
<105℃
Maximum temperature tolerance:
105℃
Shielding layer material:
Tin plated copper wire weaving
Insulation layer material:
Modified Fluoroplastics/Polyolefins
Explosion-proof rating:
Ex e II T4
Protection level:
IP65
Minimum bending radius:
≥20mm
Application scenarios:
Pipeline antifreeze and process insulation
Retail Price
10,000,000.00USD
重量
kg
- Product Description
-
rated voltage 220V
rated power 20W/m, 25W/m, 30W/m
Maximum maintenance temperature <105℃
Maximum temperature tolerance 105℃
Shielding layer material Tin plated copper wire weaving
Insulation layer material Modified Fluoroplastics/Polyolefins
Explosion-proof rating Ex e II T4
Protection level IP65
Minimum bending radius ≥20mm
Application scenarios Pipeline antifreeze and process insulation
Description :
This product is an explosion-proof shielded self limiting temperature electric heat tracing belt, designed specifically for anti freezing, insulation, and process heat tracing of industrial and civil pipelines. The product adopts advanced self limiting temperature technology, and the core heating element is PTC semiconductor material, which can automatically adjust the output power according to changes in ambient temperature. When the temperature of the pipeline decreases, the power automatically increases to provide heat; When the temperature rises, the power automatically decreases, effectively preventing overheating and ensuring system safety and energy efficiency.
The external wrapped metal braided shielding layer not only enhances the mechanical strength of the heat tracing belt, making it wear-resistant and tensile, but also provides excellent grounding protection function, effectively eliminating electrostatic interference and meeting the safety requirements of explosion-proof places. The outer insulation sheath is made of modified fluoroplastic or polyolefin material, which has the characteristics of corrosion resistance, aging resistance, waterproof and moisture-proof, and can work stably for a long time in harsh outdoor or chemical environments.
This series of products is widely used for heat tracing and insulation of pipelines, valves, pump bodies, and instrument boxes in industries such as petroleum, chemical, power, metallurgy, and fire protection. Especially suitable for anti freezing maintenance of long-distance transportation pipelines and situations where a certain process temperature needs to be maintained. Easy to install, can be cut to any length for use, overlaps and crosses without burning, greatly reducing construction difficulty and maintenance costs. It is an ideal choice to solve the problems of pipeline freezing and medium solidification in winter.
