Outdoor LED Double Headed Courtyard Light Black Die Cast Aluminum Community Park Road Lighting High Brightness Energy saving Street Light

Outdoor LED Double Headed Courtyard Light Black Die Cast Aluminum Community Park Road Lighting High Brightness Energy saving Street Light

Category:

lighting/Outdoor lighting fixtures/Courtyard light

Model:

GT-TYD2119-W

Brand:

Starry Sky Eye Courtyard Light (Double Headed)

Light source type:

LED

power:

2×35W

luminous flux:

≥7200lm

color temperature:

3000K/4000K/6000K optional

Protection level:

IP65

material:

Die cast aluminum+lens

height:

Customization ranging from 3 meters/3.5 meters/4 meters

Installation method:

Buried installation of flange plate

Working Voltage:

AC85-265V

service life:

≥ 50000 hours

Retail Price

9,000,000.00USD


重量

kg

  • Product Description
  • Light source type

    LED

    power

    2×35W

    luminous flux

    ≥7200lm

    color temperature

    3000K/4000K/6000K optional

    Protection level

    IP65

    material

    Die cast aluminum+lens

    height

    Customization ranging from 3 meters/3.5 meters/4 meters

    Installation method

    Buried installation of flange plate

    Working Voltage

    AC85-265V

    service life

    ≥ 50000 hours

    Description :

    This product is a dual headed LED courtyard light designed specifically for outdoor environments, combining aesthetics and functionality. It is suitable for night lighting in various scenarios such as residential areas, parks, villa courtyards, pedestrian streets, and municipal roads. The lamp body is made of high-strength die cast aluminum material, and the surface is treated with electrostatic spraying to present a matte black texture. It not only has a modern and simple appearance, but also has excellent anti-corrosion, rust proof, and UV resistance capabilities, which can resist wind and rain erosion for a long time and ensure stable operation in humid, high temperature, or cold environments.


    Double headed symmetrical lamp arm design, equipped with independent LED module light sources on each side, achieving wide-angle uniform light distribution, effectively eliminating blind spots in lighting, and enhancing pedestrian safety and spatial comfort. The LED light source uses high-efficiency chips with a light efficiency of over 120lm/W, which saves more than 60% energy compared to traditional high-pressure sodium lamps, and has a lifespan of up to 50000 hours, significantly reducing maintenance costs in the later stage. The lamp is equipped with an intelligent driving power supply, supporting wide voltage input (AC85-265V), and has overvoltage, overcurrent, and lightning protection functions, adapting to complex power grid environments.

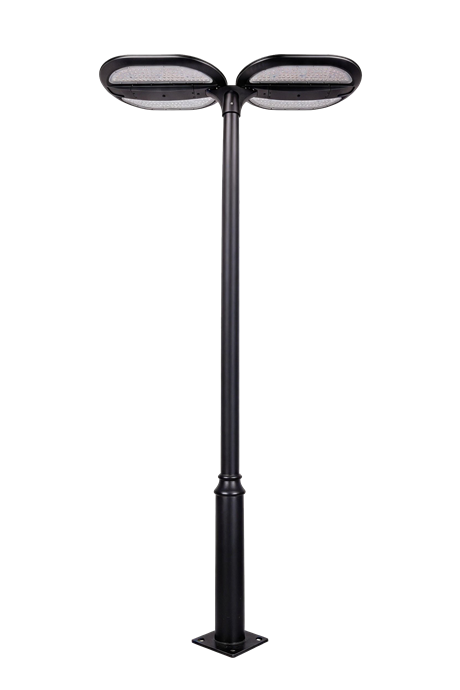

    The lamp post structure adopts a segmented design, with a thickened flange at the bottom and 4 installation holes for easy and secure fixation on the cement base; The central decorative ring enhances the visual sense of hierarchy, and the top arms are extended in a Y-shape, with a stable mechanical structure and a wind resistance level of 12. The whole lamp has an IP65 protection level, dustproof and waterproof, suitable for all-weather outdoor use. Optional light control+time control switch or remote intelligent control system to achieve automatic opening and closing and brightness adjustment, meeting the needs of smart city management.


    The target customers include property management companies, municipal engineering units, landscape design companies, real estate developers, and private courtyard owners. Whether it's building new community facilities or upgrading old renovation projects, this lighting fixture can provide efficient, durable, and aesthetically pleasing lighting solutions, helping to create a safe, warm, and energy-efficient nighttime environment.
