TBI high-precision ball screw pair grinding level transmission screw CNC machine tool CNC automation equipment accessories
Category:
mechanical equipment/Machine tool accessories/Machine tool screw
Model:
SFAR1610
Brand:
TBI
brand:
TBI MOTION
Product Type:
Ball screw pair
material:
alloy steel
surface treatment:
Precision grinding/chrome plating
accuracy class:
C3/C5/C7/C10 (optional)
lead:
5mm/10mm/16mm/20mm, etc. (common specifications)
Diameter range:
12mm-80mm (common specifications)
transmission efficiency:
>90%
Operating Temperature:
-20 ℃ to+100 ℃
lubrication method:
Grease lubrication or oil lubrication
Retail Price
9,000,000.00USD
重量
kg
- Product Description
-
brand TBI MOTION
Product Type Ball screw pair
material alloy steel
surface treatment Precision grinding/chrome plating
accuracy class C3/C5/C7/C10 (optional)
lead 5mm/10mm/16mm/20mm, etc. (common specifications)
Diameter range 12mm-80mm (common specifications)
transmission efficiency >90%
Operating Temperature -20 ℃ to+100 ℃
lubrication method Grease lubrication or oil lubrication
Description :

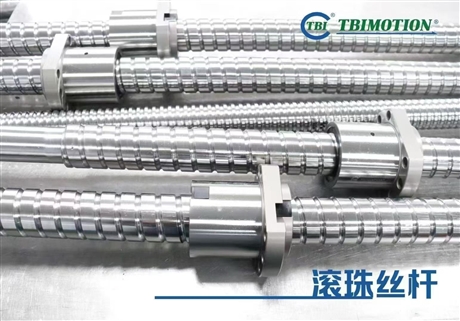

This product is a high-precision ball screw pair from Taiwan's TBI MOTION brand, which is a core key component in industrial automation and precision mechanical transmission systems. The picture shows multiple sets of precision machined ball screws and nut seat components, with a metallic luster on the surface and full and uniform thread profiles, reflecting a high level of manufacturing technology.
[Product selling points]
1. High precision transmission: Advanced grinding or rolling processes (depending on the specific model) are used to ensure minimal lead error of the screw, achieving micrometer level positioning accuracy and meeting high-precision machining requirements.
2. Low friction and high efficiency: By replacing traditional sliding friction with rolling friction between the screw shaft and nut through ball bearings, the transmission efficiency can reach over 90%, significantly reducing driving torque and saving energy.
3. Long lifespan and high rigidity: High quality alloy steel materials are selected, which undergo heat treatment and precision grinding to have high hardness, wear resistance, and rigidity. They can withstand large axial loads and have a long service life.
4. Smooth and Silent Operation: The optimized raceway design ensures smooth ball circulation, effectively reducing operating noise and vibration, making it suitable for precision equipment with high requirements for the working environment.
5. Pre tightening eliminates clearance: Supports pre tightening force adjustment, effectively eliminates axial backlash, and improves the system's repeated positioning accuracy and rigidity.
Typical usage scenarios
Widely used in CNC machine tools (CNC machining centers, lathes, milling machines), semiconductor manufacturing equipment, precision electronic assembly lines, industrial robot joints, laser cutting machines, injection molding machines, and various automation specialized equipment that requires precise linear motion.
[Target audience]
Mechanical equipment manufacturers, automation system integrators, machine tool maintenance and modification service providers, precision instrument research and development institutions, and industrial purchasers who need to purchase high-quality transmission components.
