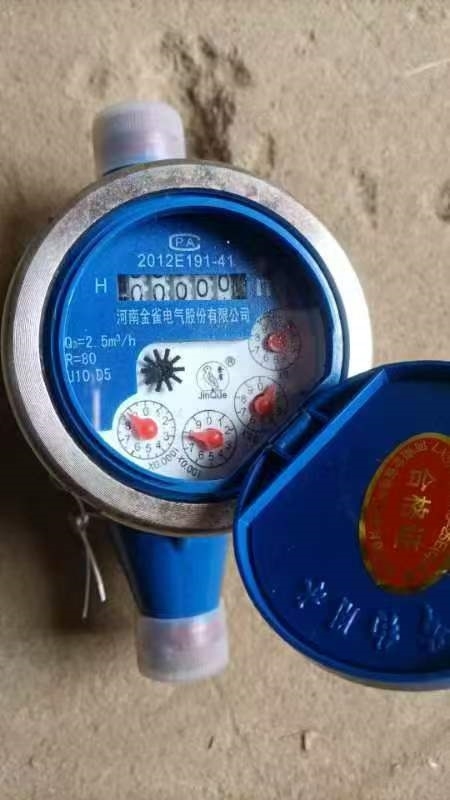

Rotor type cold water meter DN15 for precise and wear-resistant measurement, suitable for household and engineering water supply measurement
Category:
Instrumentation/Flow meter/water meter
Model:
LXS-15E
Brand:
Jinque Electric
nominal diameter:
DN15
Common traffic (Q3):
2.5m³/h
Overload flow (Q4):
3.125m³/h
Minimum flow rate (Q1):
0.04m³/h
Boundary flow (Q2):
0.064m³/h
Maximum allowable work pressure:
1.0MPa (MAP)
working medium:
Cold water (≤ 50 ℃)
accuracy class:
Level 2
connection method:
threaded connection
Protection level:
IP68
Retail Price
9,000,000.00USD
重量
kg
- Product Description
-
nominal diameter DN15
Common traffic (Q3) 2.5m³/h
Overload flow (Q4) 3.125m³/h
Minimum flow rate (Q1) 0.04m³/h
Boundary flow (Q2) 0.064m³/h
Maximum allowable work pressure 1.0MPa (MAP)
working medium Cold water (≤ 50 ℃)
accuracy class Level 2
connection method threaded connection
Protection level IP68
Description :
This product is a rotary wing type cold water meter produced by Henan Jinque Electric Co., Ltd., designed specifically for accurately measuring the amount of cold water flowing through pipelines. This water meter adopts a classic wet counting structure, with clear and intuitive readings. The accumulated water consumption is displayed through the combination of pointers and a dial wheel on the dial, making it convenient for users and management departments to read and calculate.
The main body of the product is usually made of high-strength copper alloy or high-quality engineering plastic, which has good corrosion resistance and compression resistance, ensuring stable operation in long-term humid environments, and is not easy to rust or leak water. The internal movement is made of precision wear-resistant materials for the rotor blades, which are sensitive to changes in water flow and have a low starting flow rate. They can effectively capture small water flows, ensuring accuracy and fairness in measurement. They are particularly suitable for solving the problem of traditional water meters being slow or insensitive.
This water meter meets the requirements of the national standard GB/T 778 series and has the characteristics of high measurement accuracy, low pressure loss, and large flow capacity. Its compact structural design and easy installation and maintenance make it widely used in the water supply network systems of residential buildings, apartment buildings, enterprises and institutions, schools and hospitals, as well as various industrial and civil buildings. It serves as a measuring instrument for trade settlement and internal assessment. The dial glass is made of reinforced material, with good impact resistance and excellent sealing performance of the cover, effectively preventing external impurities from entering and human tampering, ensuring the safety and reliability of measurement data. It is an ideal water supply metering solution for water companies, property management companies, and construction projects.
