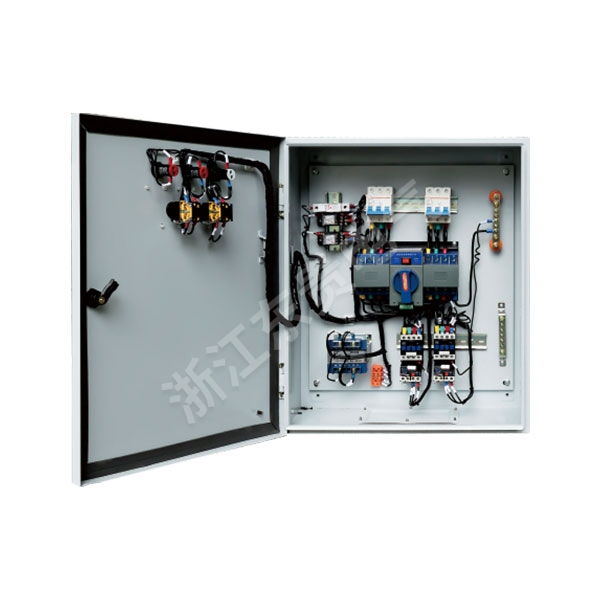

Schneider Component Distribution Box Industrial Electrical Control Cabinet Complete Set of Switchgear

Description :

  Schneider component distribution box is a low-voltage distribution device that integrates Schneider Electric's core components, mainly used for energy distribution, circuit protection, and motor control. It solves the problems of complex wiring and low protection accuracy in traditional power distribution systems, and is suitable for typical working conditions such as factory workshops, commercial buildings, and infrastructure that require stable power supply. This distribution box is designed with modularity, and Schneider original components such as circuit breakers, contactors, and relays are arranged reasonably to ensure that the power can be quickly cut off in case of overload, short circuit, or leakage, ensuring the safety of backend equipment. It is an indispensable infrastructure in industrial automation and building electrical systems.

  The shell of Schneider electronic component distribution box is usually made of high-quality cold-rolled steel plate or stainless steel material, and the surface is treated with electrostatic spraying, which has good anti-corrosion and anti rust performance. The protection level is commonly IP54 or IP65, and it can adapt to dusty and humid environments. The box structure is manufactured in accordance with the IEC 61439 or GB 7251 series standards, and the internal installation plates are galvanized. The grounding system is reliable. The critical electrical clearance and creepage distance meet the regulatory requirements, and the busbar adopts high conductivity copper bars with high current carrying capacity and low temperature rise. All Schneider components have passed 3C certification and CE certification, ensuring stable operation in AC circuits with rated voltage of 400V or below and frequency of 50Hz. The insulation resistance value is usually greater than 10M Ω.

  When selecting Schneider component distribution boxes, it is necessary to clarify the nature of the load (such as lighting, power, or mixed loads), total power, and number of branches. If used for motor control, it is necessary to confirm whether a soft starter or frequency converter interface is equipped; If used for power supply of precision instruments, it is recommended to add surge protectors. Compared with ordinary assembled distribution boxes, distribution boxes using Schneider original components have advantages in breaking capacity, mechanical life, and action accuracy, but the cost is slightly higher. Not suitable for high-voltage transmission scenarios or flammable and explosive special hazardous areas (unless customized explosion-proof type). When purchasing, it is necessary to verify the primary circuit diagram and secondary control logic to ensure that the component model matches the actual load current, avoiding "small horses pulling big cars" or excessive redundancy.

  When installing Schneider electronic component distribution boxes, they should be fixed vertically, and the deviation should not exceed the allowable range of the specifications. The inlet and outlet holes should be sheathed to prevent cutting the cables. In daily maintenance, it is necessary to regularly (such as every six months) check whether the wiring terminals are loose, whether the contacts have oxidation or burn marks, and use an infrared thermal imaging device to detect the operating temperature. If frequent tripping of the circuit breaker is found, the load side fault should be checked first instead of forcibly closing. Keep the box clean and dry to prevent dust accumulation from causing poor heat dissipation or creepage flashover. The typical service life can reach 10-15 years, but it is recommended to conduct a comprehensive insulation test and mechanical lubrication every 5 years to extend the service life of Schneider components and ensure the continuous reliability of the power distribution system.
