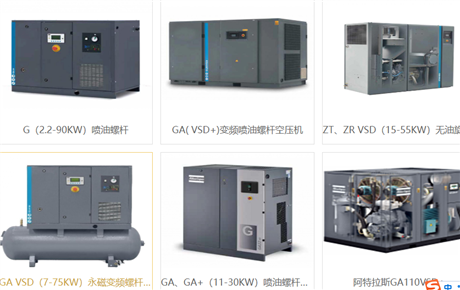

Atlas Copco industrial air compressor

Description :

  Atlas Copco air compressor is a power equipment that converts mechanical energy into gas pressure energy. It is mainly used to provide stable and clean compressed air source for industrial production. This device is widely used in manufacturing, mining, construction, and energy industries to meet the needs of pneumatic tool driving, process gas transportation, and automation control. As a world-famous compression technology solution, Atlas Copco air compressor is famous for its high reliability, which can adapt to the continuous heavy load operation environment and ensure that the production line will not be shut down due to the fluctuation of gas source. It is the core power unit in the modern factory infrastructure.

  This series of air compressors typically use high-strength cast iron or aluminum alloy bodies, coupled with precision machined rotor or piston components, to ensure long-term sealing and durability. The execution standard complies with the ISO 8573-1 compressed air quality level requirements, and some models have passed CE certification and energy efficiency level one standards. The typical exhaust pressure range covers 0.7MPa to 1.3MPa, and the exhaust volume varies from a few cubic meters per minute to several hundred cubic meters per minute depending on the model. The protection level of the motor is usually IP54 or IP55, with an insulation level of F, ensuring the safety and stability of the electrical system in harsh industrial environments. The noise control has been optimized to comply with environmental regulations in industrial settings.

  When selecting, the model should be determined based on the actual gas consumption, required pressure, and gas fluctuation. For occasions with large and continuous gas consumption, it is recommended to select screw type Atlas Copco air compressor, which has long maintenance cycle and stable operation; For intermittent use of small air volume scenarios, piston type may have a cost advantage. Attention should be paid to distinguishing between oil and oil-free models. The food and pharmaceutical industries must choose oil-free machines to avoid pollution, while general mechanical processing can use oil injected screw machines to achieve better cooling effects. Be sure to verify the voltage level (380V/50Hz or special voltage) and installation space dimensions to ensure that the site conditions match.

  When installing Atlas Copco air compressor, it is necessary to ensure that the foundation is flat and firm, and reserve enough maintenance space and air inlet and exhaust channels to avoid unit tripping due to overheating caused by high temperature return air. The key points of daily maintenance include regularly replacing air filters, oil filters, and oil-gas separator cores, checking the lubricating oil level and quality, and cleaning the dust in the cooler. It is recommended to perform routine maintenance every 2000-4000 hours of operation and conduct a comprehensive inspection once a year. Common faults such as high exhaust temperature are often caused by blockages in the cooling system, and insufficient air pressure requires inspection of the intake valve and internal leaks. Regularly recording operating parameters can help predict potential risks in advance.
