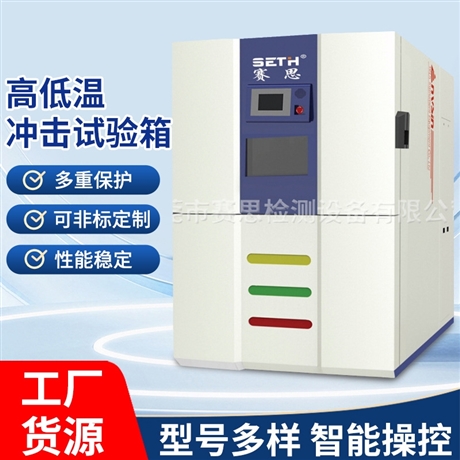

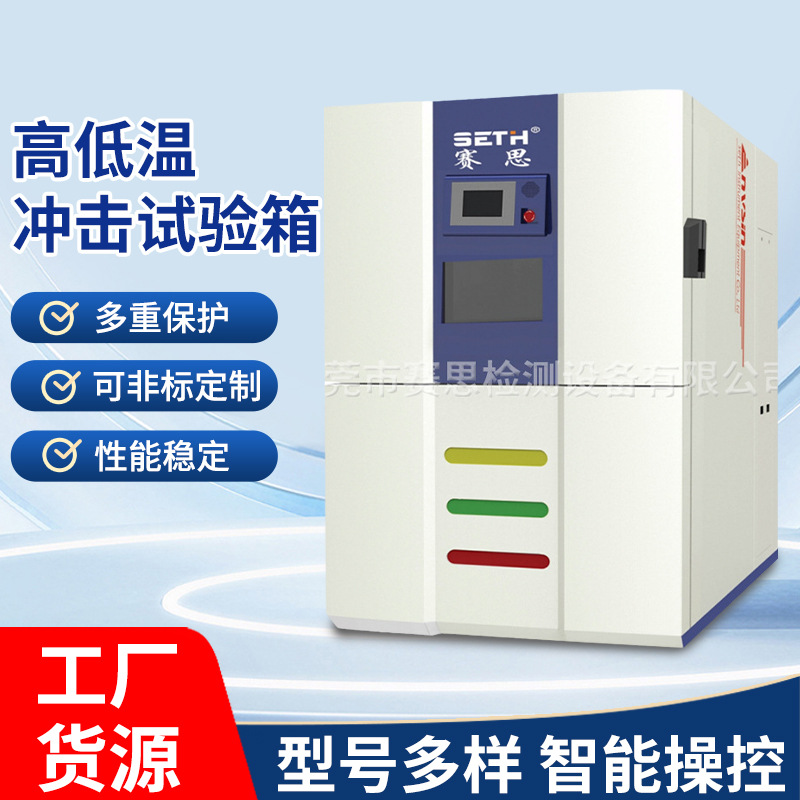

Two box high and low temperature cold and hot test box SETH Saisi SELA3 50L temperature -40 ° C~+150 ° C

Description :

The two box type high and low temperature thermal shock test chamber (also known as the basket/hanging basket type thermal shock test chamber) is a reliability testing equipment that simulates the rapid alternating environment of products between extremely high and low temperatures. The core achieves an instantaneous temperature shock of ≤ 10 seconds by rapidly physically moving the sample between independent high and low temperature chambers, and evaluates the material/product's ability to resist thermal expansion, contraction, and temperature changes.

Working principle of two box high and low temperature cold and hot shock test chamber:

1. Place the sample in a basket and first insulate it in a high-temperature chamber (e.g.+150 ℃, 30 minutes);

2. Quickly lower the basket (≤ 10 seconds) and enter the low-temperature chamber for low-temperature impact (e.g. -55 ℃, 30 minutes);

3. Quickly move the basket up and return to the high-temperature chamber, cycling until the set number of times is reached;

4. The entire process is automatically switched by the control system to simulate extreme temperature fluctuations.

The two box high and low temperature thermal shock test chamber is a device specifically designed to test the tolerance performance of materials under instantaneous temperature changes. It simulates extreme environments by rapidly switching between high and low temperatures to evaluate the thermal stability and durability of materials or products. This type of equipment is commonly used in industries such as electronics, automotive, aerospace, military, and others that require high material performance.

The two box high and low temperature thermal shock test chamber is suitable for assessing the ability of the entire device, components, parts, etc. to withstand rapid temperature changes. This temperature shock test can understand the impact of temperature changes on the test sample once or continuously multiple times.

Two box high and low temperature thermal shock test box products · Features

1. Modern design, latest modular manufacturing technology, perfect control capability.

2. The test chamber shall be defrosted once after a cycle of 700 hours or more.

3. The patented design pioneered the use of observation windows to achieve visual effects in object measurement.

4. The color screen 32-bit control system is managed through Ethernet and has USB data access function.

5. Programmable load power supply with 4-channel ON/OFF output control, protecting the safety of the tested product and equipment.

6. The anti condensation function and over temperature, windless, smoke protection function of the independent test sample.

7. It can expand the network video monitoring function and synchronize with data testing.

8. Scalable APP mobile integration management.

9. The most environmentally friendly cooling flow control, energy-saving and fast temperature rise and fall rate

10. Unique operating mode design, the box returns to room temperature after the experiment to protect the state of the test object.

11. Automatic reminder of maintenance time for control system equipment and software design function for fault medical records.

12. The device can expand remote service functions and provide teaching CDs for machine usage.

Two box high and low temperature thermal shock test chambers meet the test standards:

1 GB/T2423.22

2 MIL STD 202F,method 107G

3 IEC 60068-2-14,Test Na

4 BS 2011

5 DIN 40046,Test Na

6 JESD22-A101-A
