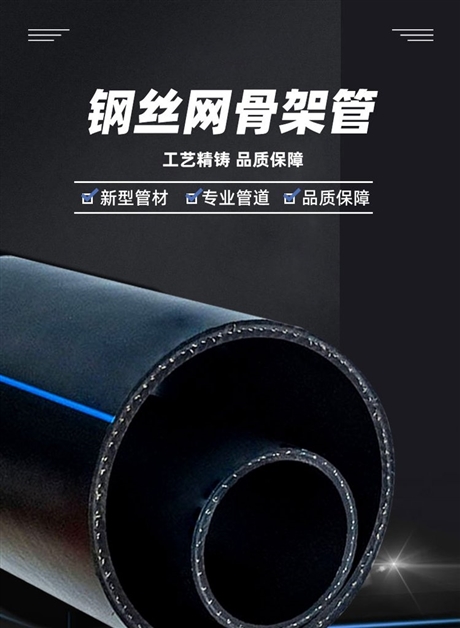

Steel wire mesh skeleton PE composite pipe

Description :

The full name of steel wire mesh skeleton PE composite pipe is steel wire mesh skeleton polyethylene composite pipeIt is a new type of composite pipe that combines the strength of steel pipes with the corrosion resistance of plastics.

It uses high-strength copper plated steel wire woven and wrapped to form a three-dimensional mesh skeleton as a reinforcement layer, and the inner and outer layers are coated with high-density polyethylene (HDPE), which is formed by bonding resin composite molding. The core advantages include:

1. ‌Excellent mechanical propertiesThe creep resistance is much better than that of pure plastic pipes, and the allowable stress is twice that of pure plastic pipes. It has good rigidity and impact resistance, and the coefficient of linear expansion is only 1/5 of ordinary plastic pipes. The strength decreases by less than 5% for every 10 ℃ increase in temperature.
2. ‌Corrosion resistant and durableThe fully enclosed PE outer layer can withstand acid, alkali, and salt corrosion within the pH range of 2-12, and its designed service life can reach more than 50 years, far exceeding that of ordinary steel pipes.
3. ‌Construction advantageThe density is only 1/8 of that of steel pipes, the weight is gentle and the toughness is good. It is mainly connected by electric melting, and the joint strength is higher than that of the pipe body. The connection is reliable, the risk of leakage is low, and the construction period is short.

        Applicable scenariosWidely used in municipal water supply, fire water supply, gas transportation, industrial corrosive fluid transportation, mining slurry transportation, seawater desalination, farmland irrigation and other fields, especially suitable for high-pressure, long-distance buried laying.
