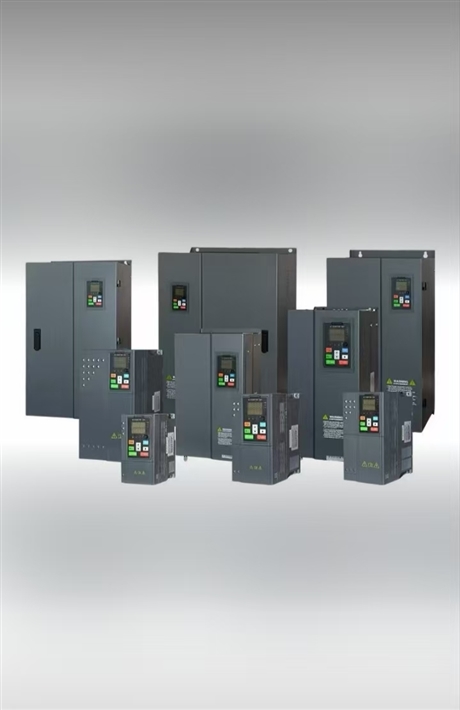

Multi voltage level high-power frequency converter drilling crane permanent magnet dedicated built-in braking unit

Description :

  This is a high-power inverter that supports wide voltage input, designed specifically for heavy-duty and special operating conditions. It covers multiple voltage levels from 220V to 1140V, and can adapt to different environments from ordinary civilian power supply to industrial high-voltage power grids. This frequency converter mainly solves the problems of current surge and energy consumption during the start-up and speed regulation of high-power motors, especially optimized for scenarios such as drilling platforms and cranes that require high torque output and fast dynamic response. Through built-in dedicated control algorithms, it can effectively drive permanent magnet synchronous motors and asynchronous motors, ensuring stable operation in continuous operating environments such as oil extraction and chemical production. It is the core component of power control for various heavy machinery equipment.

  In terms of specifications and processes, this frequency converter supports five mainstream voltage levels: 220V, 380V, 660V, 690V, and 1140V, meeting the grid access requirements of different regions and industry standards. Internally integrated braking unit enables fast energy consumption braking without the need for external connections, improving the compactness and reliability of the system. The product design follows industrial grade electromagnetic compatibility standards and has strong anti-interference ability, suitable for harsh environments such as drilling rigs and ball mills with strong vibration and high dust. The power module adopts high-quality IGBT devices, and the heat dissipation structure has been optimized to ensure low-temperature stability under long-term full load operation. Standardization of electrical interfaces facilitates signal interaction with upper control systems such as PLC and DCS, and complies with mainstream industrial automation communication protocols.

  When selecting, it is important to confirm the voltage level of the on-site power grid and the rated power of the motor to avoid overvoltage or undervoltage operation. For drilling platforms and crane applications, it is recommended to choose models with vector control function to achieve low-speed and high torque characteristics; If used for constant pressure water supply or fan pump, V/F control mode can be selected to simplify debugging. Please note that ordinary general-purpose frequency converters may not be able to directly drive permanent magnet motors. This model is designed specifically for permanent magnets and heavy loads, and can better match the characteristics of such loads. If the working condition involves frequent forward and reverse rotation or emergency stop, it should be verified whether the dissipated power of the built-in braking unit meets the requirements. If necessary, the power braking resistor should be increased externally to prevent tripping or equipment damage caused by high DC bus voltage.

  When installing, it should be hung vertically on the wall or placed inside the cabinet to ensure sufficient heat dissipation space above and below. The air inlet should be equipped with a dust-proof net to cope with dust problems in chemical and mining sites. When wiring, it is necessary to distinguish between the main circuit power end and the motor output end, and reverse connection is strictly prohibited. The grounding terminal must be reliably grounded to eliminate interference. Daily maintenance includes regularly cleaning the dust in the air duct, checking the operation status of the fan, and tightening the wiring terminals to prevent poor contact and heating caused by looseness. Common faults such as overcurrent and overvoltage are usually caused by sudden load changes or grid fluctuations, which can be eliminated by adjusting acceleration and deceleration time or checking peripheral circuits. It is recommended to conduct an insulation test every six months to ensure good insulation performance between the motor and the inverter body, and to extend the service life of the equipment.
