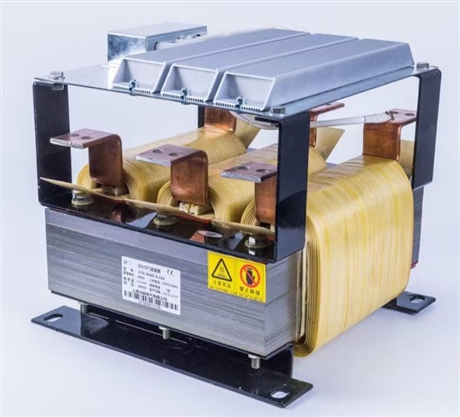

DV

Description :

◆   It can effectively suppress high-frequency losses and reduce transient voltage dv/dt.

◆   Prevent the superposition of motor terminal voltage caused by traveling wave reflection, reduce motor insulation pressure, and extend cable length.

◆   Reduce harmonic domain variation coefficient and extend motor life.

Technical parameters;

1. Rated voltage:;   F3 380VAC/50Hz

2. Rated current:;   5A-1600A

3. Electrical strength:;   Core winding 3000VAC/50Hz/10s without arcing breakdown (factory test)

4. Insulation resistance:;   1000VDC insulation resistance ≥ 100MV

5Reactor noise: less than75dB (tested at a horizontal distance of 1 meter from the reactor)

6. Protection level:;   IP00

7. Insulation level:;   F   level

8. Product execution standard: IEC289:1987 Reactor

GB10229-88 Reactor (eqv IEC289:1987)

JB9644-1999 Reactor for Semiconductor Electrical Transmission
