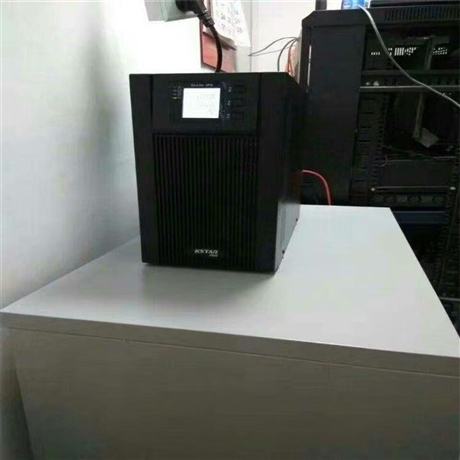

Kstar YDC9101S Three In One Out UPS Power Supply External Battery Long Term Endurance

Description :

  The Kodc9101S is a high-performance three in single out UPS uninterruptible power supply designed to provide stable and continuous power protection for critical loads. It mainly solves the damage or data loss risks caused to precision equipment by power grid problems such as power interruption, voltage fluctuations, and frequency drift. This model adopts online dual transformation technology, which can achieve zero switching time power supply, ensuring that sensitive loads such as backend servers, network equipment, medical instruments, etc. can still operate normally in harsh power grid environments. Its "three in, one out" design means that the input is three-phase AC power and the output is single-phase AC power, which is suitable for scenarios that require high-power input but load single-phase equipment, such as small data center rooms, monitoring centers, laboratory instrument rooms, and other typical working conditions.

  The Kodc9101S UPS power supply has a wide voltage input range and high power factor, effectively reducing harmonic pollution to the power grid. The fuselage usually adopts a standard rack or tower structure, which is convenient for installation and deployment in the cabinet. The core components include rectifiers, inverters, static bypass switches, and charging circuits, all of which have undergone rigorous aging and full load testing. This model supports external battery packs and can flexibly configure battery capacity according to the user's required backup time, ranging from a few minutes to several hours, to meet long latency requirements. The implementation standard complies with GB/T 7260.3-2003 "Uninterruptible Power Supply Equipment (UPS) Part 3: Methods and Test Requirements for Determining Performance" and IEC 62040-3 international standard, and has multiple protection functions such as overvoltage, undervoltage, overload, short circuit, overheating, etc., to ensure the safety of the equipment itself and the load.

  When selecting the Coaster YDC9101S, it is necessary to clarify the total load power and properties (inductive, capacitive, or resistive), and it is recommended to reserve 20% -30% power margin to cope with peak impact. Suitable for IT equipment, communication base stations, security systems, and other scenarios that require high power continuity. If the load is a pure three-phase balancing device, the three in three out model should be selected instead of this three in single out model. Compared with backup UPS, online YDC9101S can provide purer sine wave output and faster response speed; Compared with modular UPS, its structure is more compact and the initial investment cost is lower, making it suitable for applications in small and medium power ranges. When purchasing, it is necessary to confirm whether the input and output voltage levels match the on-site power grid environment, and whether parallel redundancy function is required.

  When installing the Coaster YDC9101S UPS power supply, ensure good ventilation, keep away from heat sources and humid environments, and the grounding resistance should be less than 4 ohms to ensure anti-interference ability and safety. When connecting external battery packs, it is important to ensure correct positive and negative polarity, and to use batteries of the same brand, batch, and capacity to avoid battery damage caused by circulating currents. It is recommended to check the battery terminal voltage and internal resistance once a quarter for daily maintenance, and conduct a charge and discharge test once a year to activate battery activity. Common faults include battery aging leading to shortened backup time, fan dust accumulation causing overheating alarm, etc. Specific alarm codes can be viewed through the panel LCD display for preliminary judgment. Regularly cleaning the air inlet filter to maintain smooth heat dissipation of the equipment can significantly extend the service life of the UPS host and battery.
