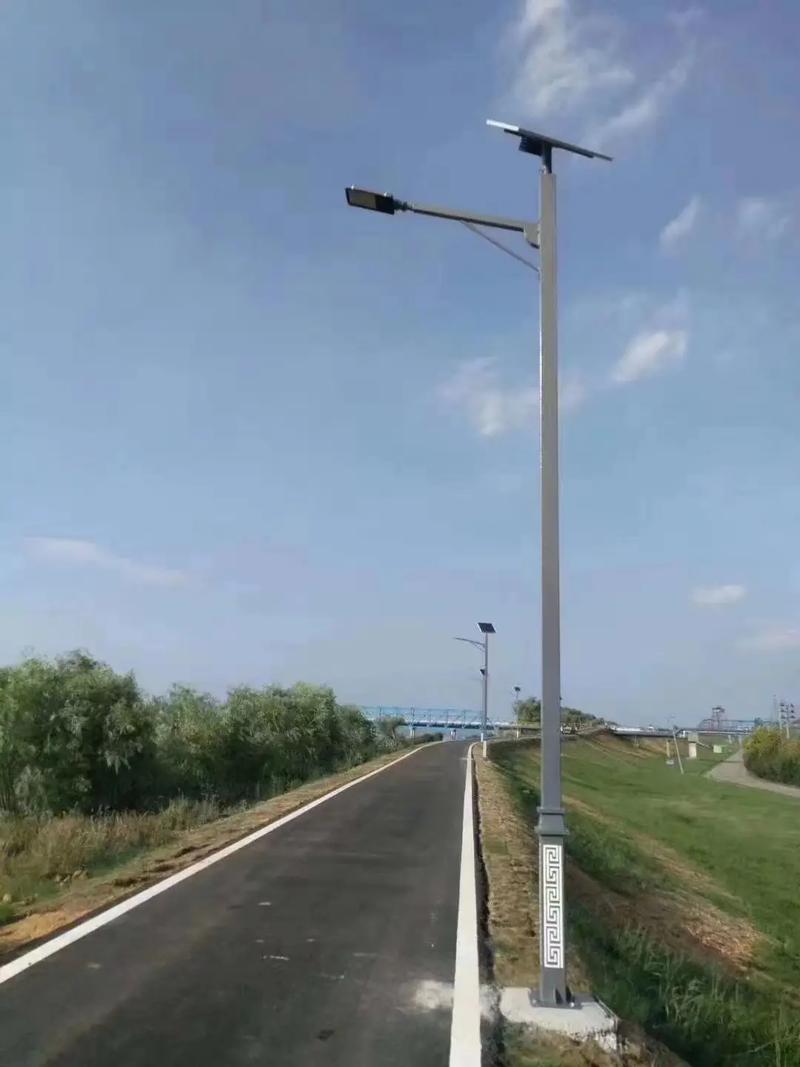

6-meter outdoor solar street light with 80W photovoltaic panel, 60W LED light source and 60AH lithium iron phosphate battery

Description :

  Solar street lights are an independent power supply system that uses photovoltaic power generation technology to achieve night lighting, mainly solving the problem of road lighting in areas without mains power or in scenarios that require energy-saving renovation. The typical operating conditions of this device are suitable for rural roads, park trails, peripheral areas of the factory, and internal roads of residential communities. This product is equipped with a 6-meter lamp post height, with a moderate coverage range. When paired with a 60W high brightness LED light source, it can meet the lighting needs of general secondary roads or branches. The core of the system consists of solar modules, energy storage batteries, and intelligent controllers, achieving an unmanned operation mode of automatic charging during the day and automatic lighting at night, significantly reducing wiring costs and later electricity expenses. It is a typical application category of green energy lighting.

  The core specifications of this solar street lamp are clear, with a photovoltaic module power of 80W, usually made of monocrystalline silicon or polycrystalline silicon material, stable photoelectric conversion efficiency, and ensuring sufficient energy storage during effective sunlight hours. The energy storage unit uses 60AH lithium iron phosphate batteries, which have longer cycle life, higher safety, and better high-temperature resistance compared to traditional lead-acid batteries, making them suitable for outdoor complex climate environments. The light source power of the lamp is 60W, with high light efficiency and low attenuation. The height of the lamp post is set at 6 meters, usually made of high-quality steel that has been hot-dip galvanized and sprayed with plastic, and has strong wind and rust resistance. The overall design meets the conventional protection level requirements of outdoor lighting facilities, ensuring that the system can still operate stably in rainy and snowy weather.

  In terms of selection, this 6-meter solar street light is suitable for roads or open areas with a width of about 6-10 meters. If there are tall buildings or trees blocking the sunlight around the installation environment, it is necessary to carefully evaluate the lighting conditions of the photovoltaic panels and adjust the installation position or increase the power of the photovoltaic panels if necessary. Compared with city circuit lights, solar street lights do not require excavation and cable laying, have a shorter construction period, but are more affected by weather. The continuous endurance on rainy days depends on the matching degree between battery capacity and load power. For main roads that require extremely high lighting brightness, it is recommended to consider higher power configurations or higher lamp posts; For courtyards or paths, this configuration may be somewhat redundant, and the light source power can be adjusted according to actual lighting requirements to achieve the best balance between cost and effectiveness.

  When installing solar street lights, it is necessary to ensure that the foundation is firm, the verticality of the lamp post meets the standard, and the orientation of the photovoltaic panel should be as south (northern hemisphere) as possible to obtain maximum sunlight. The focus of daily maintenance is to regularly clean the dust, bird droppings, and other obstructions on the surface of the photovoltaic panel to ensure charging efficiency. At the same time, it is necessary to check whether the lens of the lamp is damaged and whether the battery compartment is well sealed to prevent rainwater from infiltrating and causing short circuits. Common faults include brightness attenuation or non illumination, often caused by battery aging or controller failure. It is recommended to check the battery health status every 2-3 years. Reasonable use and maintenance can extend the overall service life of solar street lights, ensure continuous and stable lighting services, and reduce the impact of sudden failures on nighttime traffic.
