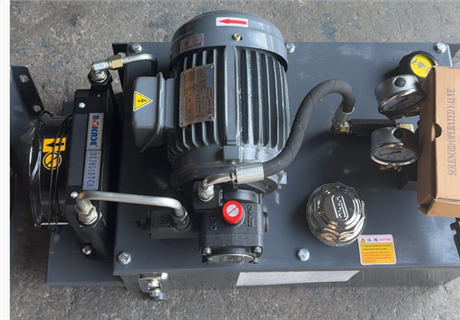

Geyao Hydraulic Station Non standard Customized Power Unit High pressure Stable Silent Oil Pump System

Description :

  Geyao Hydraulic Station is an independent hydraulic power source equipment that integrates hydraulic pumps, oil tanks, control valves, and auxiliary components. It mainly solves the power requirements of industrial machinery actuators for pressure, flow, and direction control. This device uses an electric motor to drive a hydraulic pump to suck oil from the oil tank, and after adjustment by a control valve group, provides high-pressure fluid power to the hydraulic cylinder or hydraulic motor. It is widely used in typical working conditions such as metallurgy, mining, engineering machinery, and automated production lines. As the core power unit, Geyao Hydraulic Station can achieve energy conversion, transmission and control, ensuring smooth operation of loads under complex working conditions. It is an indispensable basic supporting device for various heavy machinery equipment.

  The specification design of Geyao Hydraulic Station strictly follows the general technical standards for hydraulic transmission. The main structure is usually a rectangular oil tank welded from high-quality carbon steel or stainless steel, with sufficient capacity to meet the needs of heat dissipation and impurity precipitation. The core components include high-performance gear pumps or plunger pumps, electromagnetic directional valves, relief valves, pressure gauges, and air filters. All connecting pipelines are made of precision seamless steel pipes or high-pressure rubber hoses to ensure no leakage at rated working pressure. The electrical control system is equipped with standard junction boxes and PLC interfaces, supporting remote start stop and status monitoring. During the equipment manufacturing process, strict cleaning, pressure testing, and performance testing are carried out to meet the ISO4406 hydraulic oil cleanliness level requirements, ensuring the reliability and stability of the system during long-term operation.

  When selecting a Geyao hydraulic station, it is important to consider the system's rated pressure, flow requirements, tank capacity, and installation space limitations. Suitable for scenarios that require continuous or intermittent hydraulic power, such as injection molding machine clamping mechanisms, hydraulic press pressing processes, and lifting platform drives. For high-frequency vibration, extreme high temperature, or highly corrosive environments, it is necessary to specify the use of stainless steel materials with high-temperature resistant seals and anti-corrosion coatings. Compared with decentralized hydraulic systems, Geyao Hydraulic Station has the advantages of compact structure, centralized maintenance, and low noise; But in ultra large distributed systems, it may be necessary to combine multiple pump station series or parallel schemes. When selecting, the medium type (usually mineral oil or water ethylene glycol) should be clearly defined to ensure the compatibility of the sealing material.

  The installation of Geyao hydraulic station should be placed on a horizontal and sturdy foundation surface, with sufficient space reserved for heat dissipation and maintenance around it. The connection between the inlet and return oil pipelines should be sealed firmly to avoid air intake and cavitation. It is recommended to regularly check the hydraulic oil level and quality for daily maintenance. Replace the hydraulic oil and clean the filter element every 2000-5000 hours of operation to prevent impurities from blocking the valve core or damaging the pump body. Common faults include high oil temperature, large pressure fluctuations, and abnormal noise, which are usually caused by blockage of the cooler, improper setting of the relief valve, or internal wear of the pump, and need to be promptly investigated. Keeping the vent holes of the fuel tank unobstructed and the electrical connectors dry can effectively extend the service life of the Geyao hydraulic station and ensure the continuous and stable operation of the production line.
