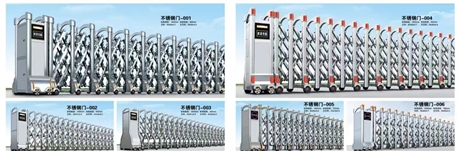

telescopic gate

Description :

This series of telescopic doors is divided into two mainstream material models: stainless steel and aluminum alloy, covering various specifications and sizes. The core parameters are standardized and the performance is stable and reliable. The specific core parameters are as follows:

• Main material: high-quality 304 stainless steel/high-strength aviation aluminum alloy, with a door thickness of 40-100mm to choose from,
• Drive motor: DC brushless variable frequency motor, power adjustable from 180W to 750W, with built-in cooling fan and thermal protection function, automatic power-off at 135 ℃ high temperature to prevent burning faults
• Operating parameters: Expansion speed of 10-15m/min, maximum expansion length of up to 18 meters, adaptable to various entrance and exit channels of 3-18 meters
• Wind resistance level: up to level 12, reinforced wind resistant reinforcement structure, no shaking or shaking in strong wind weather
• Control mode: remote control, manual button, mobile remote control, license plate recognition linkage, access control system linkage, multi-mode optional
• Protection level: The waterproof and dustproof level of the body is IP54, suitable for complex environments such as outdoor exposure, rain, snow, and direct sunlight
• Auxiliary functions: power-off manual clutch, backup battery life, infrared anti pinch, rebound in case of obstruction, night flashing warning
• Service life: Under normal working conditions, the mechanical service life is ≥ 10 years, and the continuous operation without faults of the motor is ≥ 5000 hours
