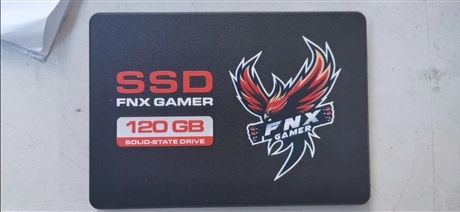

Color printing process, hard disk shell, wear-resistant and impact resistant, data storage protection component

Description :

  The hard disk shell is a core structural component used to protect internal hard disk drives or solid-state drives, mainly solving the problems of physical impact, dust intrusion, and electromagnetic interference faced by data storage devices during transportation, installation, and use. This product is typically used in typical working conditions such as desktop computer cases, server storage arrays, and external portable hard drive enclosures. As a physical barrier for data storage systems, the hard disk casing not only needs to have sufficient structural strength to fix the hard disk position and prevent damage to the read/write head or loose interfaces caused by vibration, but also needs to have good heat dissipation auxiliary functions to ensure temperature stability under high load operation. Through precise mold forming and surface treatment, the hard drive case shell can provide a standardized installation environment for 2.5-inch or 3.5-inch hard drives of different specifications, and is an indispensable component in building a stable data storage infrastructure.

  In terms of specifications and processes, the hard drive case shell is usually made of high-quality ABS engineering plastic or cold-rolled steel plate (SPCC), and the specific material selection depends on the requirements of the application scenario for weight, heat dissipation, and shielding performance. The color printing process is a prominent feature of this product, which directly prints the brand logo, capacity parameters, serial number or decorative pattern on the surface of the shell through screen printing, transfer printing or UV printing technology. The ink adhesion is strong, scratch resistant and not easy to fade. In terms of implementing standards, the product size strictly follows JEDEC or SFF specifications to ensure perfect matching with mainstream hard drive brackets and screw hole positions. The surface has undergone anti-static treatment, with a resistance value controlled between 10 ^ 6-10 ^ 9 ohms, effectively preventing static electricity accumulation from causing damage to sensitive electronic components. Some high-end hard drive cases have also passed RoHS environmental certification, ensuring that the materials are non-toxic and harmless, and meet export and green procurement requirements.

  When selecting, it is necessary to clarify the size specifications of the hard drive. The 2.5-inch hard drive case is mainly used for laptops and small peripherals, with a compact structure; 3.5-inch hard drive cases are more commonly found in desktop computers and enterprise storage devices, emphasizing stability and heat dissipation space. If there is strong electromagnetic interference in the application environment, metal materials with grounding design should be preferred for the hard disk case shell to achieve better shielding effect; If weight is sensitive or insulation is required, ABS plastic material for the hard drive case shell is more suitable. The selection of color printing technology should be determined based on the batch size. For small batches, digital printing can be chosen, while for large batches, it is recommended to use screen printing to reduce costs. It should be noted that ordinary plastic hard drive cases are not suitable for high-temperature industrial environments. In this case, alternative solutions such as high-temperature resistant special engineering plastics or metal alloy materials should be selected to avoid poor contact of the hard drive due to thermal deformation.

  Before installing the hard drive casing, please confirm that the interface direction of the internal hard drive is consistent with the reserved hole position of the casing. Use standard M3 or M4 self tapping screws to fix it, with a torque controlled at 0.5-0.6N · m, to avoid over tightening and causing the screw threads to slip or the casing to crack. In daily maintenance, regularly check whether the color printing on the surface of the shell is clear. If there is severe wear and tear that may affect asset identification, the label or shell should be replaced in a timely manner. Keep the ventilation holes of the shell unobstructed, regularly clean the accumulated dust, and prevent dust accumulation from affecting the heat dissipation efficiency of the hard drive. Common faults include broken shell buckles or sliding screw holes, which are usually caused by repeated disassembly or violent installation. It is recommended to establish a standardized assembly process. If the outer shell is found to be deformed, it should be immediately stopped from use and replaced with a new hard disk shell to avoid the risk of data loss caused by squeezing the hard disk circuit board.
