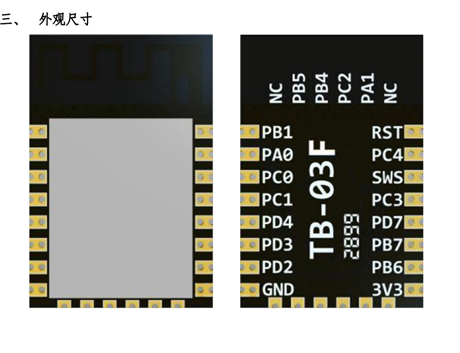

High cost-effective wireless serial port transparent transmission solution for master-slave integrated Bluetooth module

Description :

  The Bluetooth module is a wireless communication component based on the Bluetooth protocol, mainly used to achieve short-range data transmission between devices. This master-slave integrated Bluetooth module solves the problems of complex wiring and limited mobility in traditional wired connections. Typical working conditions include industrial data acquisition, smart home control, and medical equipment interconnection. It supports automatic switching between host and slave modes or manual configuration, and can flexibly adapt to point-to-point and point to multipoint communication requirements, providing stable wireless serial port transparent transmission function for embedded systems and reducing system integration difficulty.

  In terms of specifications, this Bluetooth module usually adopts UART serial port interface, compatible with TTL level, and easy to directly connect with main control chips such as microcontrollers and ARM. The working voltage range is generally 3.3V to 5V, with low power consumption and a standby current of microampere level, suitable for battery powered scenarios. The transmission distance can reach 10 to 100 meters in an accessible environment (depending on the power level), and supports SPP Bluetooth serial protocol. The module integrates PCB antenna or external IPEX interface, complies with Bluetooth SIG certification standards, has strong anti-interference ability and low data packet loss rate, ensuring communication stability in complex electromagnetic environments.

  When selecting, it is necessary to clarify the requirements of the application scenario for transmission distance and speed. The advantage of the master-slave integrated design is that there is no need to distinguish between the motherboard and the slave board. The same model module can be used to establish a bidirectional communication link, simplifying inventory management. If long-distance transmission is required, a model with power amplification function should be selected; If high real-time performance is required, attention should be paid to the delay parameters of the module. Compared with Wi Fi modules, Bluetooth modules have lower power consumption and faster pairing, but their bandwidth is smaller and not suitable for large data transmission such as video. They are suitable for small packet interaction scenarios such as sensor data and control commands.

  During installation, pay attention to leaving a clear space around the antenna to avoid metal obstruction affecting signal radiation. The typical usage cycle is long, and daily maintenance mainly involves keeping firmware versions updated to fix known vulnerabilities. Common faults include pairing failure or garbled data, often caused by mismatched baud rate settings or excessive power ripple. It is recommended to check the consistency of serial port parameters and increase the power filter capacitor. In extreme low or high temperature environments, it is necessary to confirm whether the working temperature range of the module meets the operating requirements, and if necessary, add insulation or heat dissipation measures to ensure the long-term reliable operation of the Bluetooth module.
