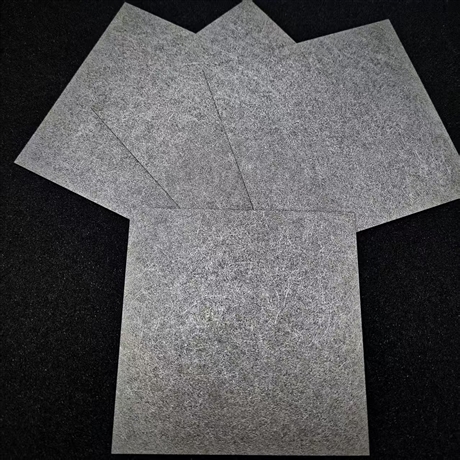

Porous titanium felt filter material 100 * 100 * 0.25mm, corrosion-resistant and high-temperature resistant, supports customized processing
Category:
metallurgy/metal powder /Titanium powder series
Model:
100*100*0.25/0.4/0.6
Brand:
Ying Gao
Material:
Industrial pure titanium TA1
Specifications and Dimensions:
100*100*0.25mm
porosity:
70%-80%
average pore size:
5-100 μ m (optional)
Temperature resistance range:
-60℃~300℃
compressive strength:
≥0.4MPa
Corrosion resistance:
Acid and alkali resistant (except hydrofluoric acid)
Processing Technology:
Vacuum sintering
Retail Price
10,000,000.00USD
重量
kg
- Product Description
-
Material Industrial pure titanium TA1
Specifications and Dimensions 100*100*0.25mm
porosity 70%-80%
average pore size 5-100 μ m (optional)
Temperature resistance range -60℃~300℃
compressive strength ≥0.4MPa
Corrosion resistance Acid and alkali resistant (except hydrofluoric acid)
Processing Technology Vacuum sintering
Description :
[Specification and Size]
- Length x Width: 100mm x 100mm
- Thickness: 0.25mm (lightweight, suitable for narrow spaces or stacked use)
[Material Characteristics]
- Substrate: Pure titanium fiber (commonly TA1/TA2)
- Sintering process: High temperature vacuum sintering, firm fiber overlap, no chips falling off
- Porosity: up to 60%~80%, strong air and liquid permeability
- Uniform thickness, smooth surface, no obvious burrs
[Core selling points]
1. Strong corrosion resistance and wide applicability
- Titanium material has excellent corrosion resistance to chloride ions, seawater, dilute sulfuric acid, and alkaline solutions
- Compared to stainless steel felt, it is more suitable for harsh environments such as chemical, electrolytic, and marine industries
2. Lightweight and strong enough
- 0.25mm thickness, occupying minimal equipment space
- The sintered fiber structure still maintains a certain mechanical strength and toughness, and is not easily damaged
3. High porosity+low flow resistance
- Three dimensional network porous structure, with low fluid resistance when passing through
- Suitable as a gas diffusion layer, current collector, and catalyst carrier
4. Good conductivity
- Titanium felt itself is conductive and can be used as electrode substrate for electrolytic cells and diffusion layer for fuel cells
5. High and low temperature resistance
- Can work for a long time in high-temperature atmospheres or corrosive liquids
- Attention should be paid to material matching when cooperating with sealing
6. Good processability
- 100 × 100mm standard piece, users can further cut it into small circular or irregular pieces
- Customized stamping or composite materials are also available
[Typical Application]
- Electrolysis of water for hydrogen production: serving as a diffusion layer/current collector for the anode or cathode
- Fuel cell: Gas diffusion layer (GDL)
- Chlor alkali industry: electrode substrate for electrolytic cells
- Filtration and Separation: Precise Filtration of Corrosive Liquids or Gases
- Catalytic reaction: catalyst support or supporting structure
- Electrochemical sensor: electrode substrate material
[Precautions for Purchasing]
- Confirm if there are strict requirements for thickness tolerance (0.25mm ± how much)
- Suggest providing operating parameters (temperature, medium, current density) for large-scale applications to confirm suitability
- Can provide sample small pieces for measured permeability and resistance
